Seat Leon >> 1.6 l MPI engines

Removing

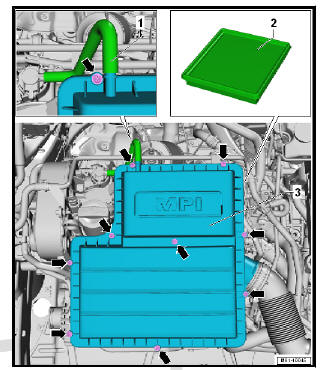

  • Pull air hose -1- off upper part of air filter.
  • Undo and remove bolts -arrows- from upper part of air filter.
  • Lift off upper part of air filter -3- and move aside complete with hoses.
  • Remove the air filter cartridge -2-.

Installation

  • Check housing and water drains for soiling, clean them, if necessary.
  • Insert air filter element -2- centrally into mounting in lower part of air filter.
  • Carefully fit upper part of air filter -3- onto lower part of air filter without applying excessive force. Screw in securing bolts and tighten them to specified torque.
  • Fit air hose -1- onto upper part of air filter again.
