Seat Leon >> Fitting location overview - front servomotors
SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Servomotors / Fitting location overview - front servomotors

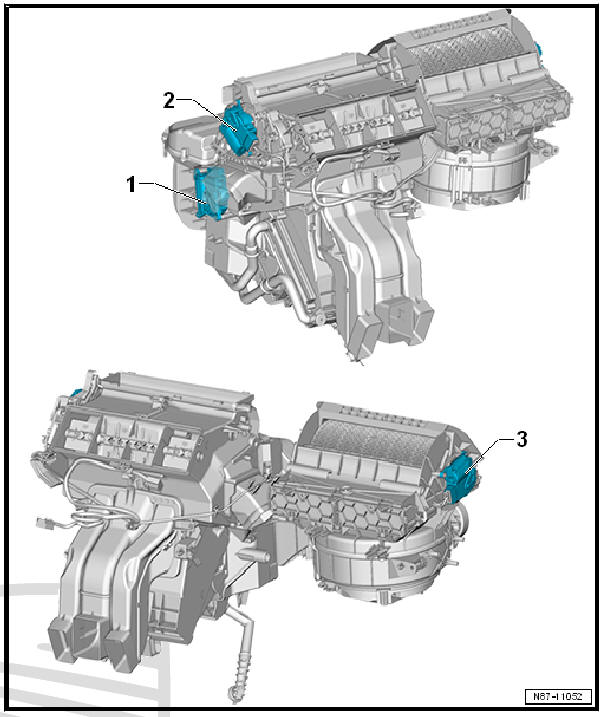

Installation location overview - front control motors, manually controlled electric air conditioning system
- - Servomotor for temperature
flap - V68-
- With potentiometer for temperature flap control motor - G92-
- Removing and fitting
- - Air distribution flap servomotor
- V428-
- With potentiometer for air distribution flap servomotor - G645- .
- Removing and fitting
- - Servomotor for air recirculation
flap - V113-
- Removing and fitting

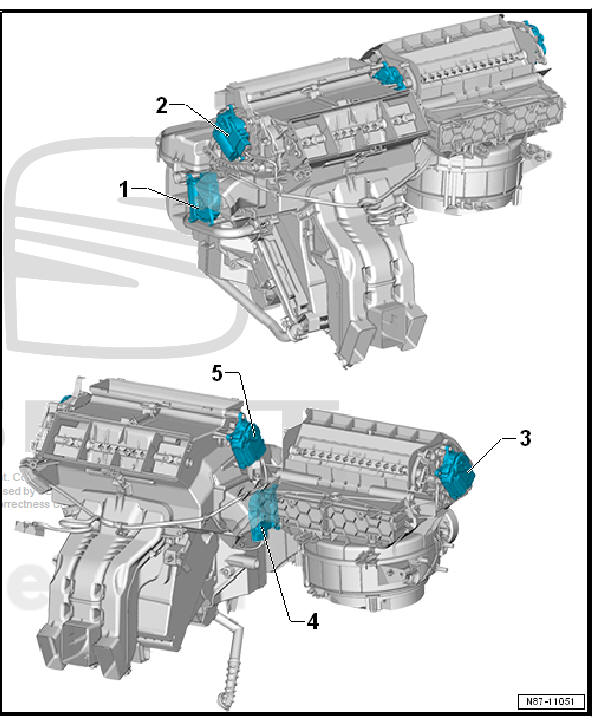

Fittings location overview - front control motors, Climatronic
In vehicles with a Start/Stop system, note the abort conditions.
- - Left temperature flap servomotor
- V158-
- With potentiometer for left temperature flap servomotor - G220- .
- Removing and fitting
- - Front air distribution flap
servomotor - V426-
- With potentiometer for front air distribution flap servomotor - G642- .
- Removing and fitting
- - Servomotor for fresh air and
air recirculation flap and air
flow flap - V425-
- With potentiometer for fresh air/recirculated air and air flow flap servomotor - G644-
- Removing and fitting
- - Right temperature flap servomotor
- V159-
- With potentiometer for right temperature flap servomotor - G221-
- Removing and fitting
- - Defroster flap servomotor -
V107-
- With potentiometer for defroster flap servomotor - G135- .
- Removing and fitting
