Overview - multifunction steering wheel

Communication

  1. - Tiptronic switch in steering wheel to shift down - E439-
    • Removal and installation
  2. - 3-spoke steering wheel
  3. - Tiptronic switch in steering wheel to shift up - E438-
    • Removal and installation
  4. - Screw
    • 2.0 Nm
  5. - Multifunction buttons on right in steering wheel - E441-
    • Removal and installation
  6. - Multifunction buttons on left in steering wheel - E440-
    • Removal and installation

Removing and installing steering wheel multifunction buttons -E441- / -E440-

Special tools and workshop equipment required

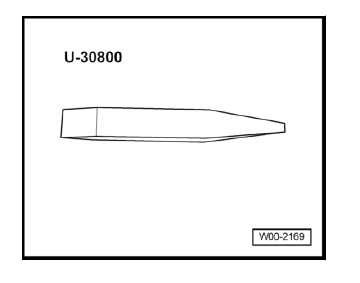

  • Release lever - U30800-

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove driver airbag.
  • Take connecting wires out of their guides in steering wheel.

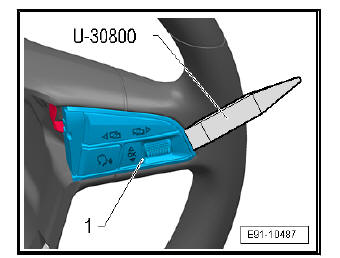

  • Clip out the multi-function buttons -1- with the wedge - U30800- as shown in the figure.

Communication

  • At the same time, pay attention to connectors leading to Tiptronic switches -2-.
  • Release and detach the plug connectors of the multi-function buttons.

Communication

fitting

Installation is carried out in the reverse sequence; note the following:

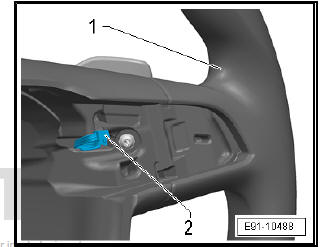

  • Ensure connecting wiring -2- for Tiptronic switches is routed as shown in illustration.
  • Route remaining connecting wiring, including connectors, through guides in steering wheel.
  • Finally, check again that wiring in steering wheel is correctly routed.

Communication

Removing and installing Tiptronic switch in steering wheel -E439- / -E438-

removing

  • Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the multi-functional buttons on steering wheel.

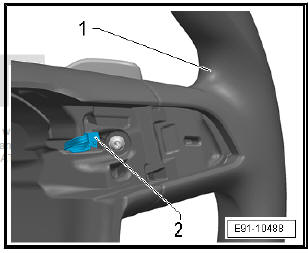

  • Remove bolt -2- on steering wheel -1- and detach Tiptronic switch with connecting wire towards rear.

Communication

fitting

Installation is carried out in the reverse sequence; note the following:

  • Observe position/routing of wiring -2- to multifunction button.
