Seat Leon >> Layout - telephone
SEAT Leon Service and Repair Manual / Communication / Communication / Telephone system / Layout - telephone
Structure - Telephone, versions without control unit 1 for information electronics - J794-
- - Mobile charging cradle -
R265-
- Removal and installation
- - Telephone microphone -
R38-
- Assembly overview
- Removal and installation
- - Control unit for stabilising
the transmission and reception
quality - R308-
- Removal and installation
- - Control unit with display for
radio and navigation - J503-
- Removal and installation
- - Sound system
- Removal and installation

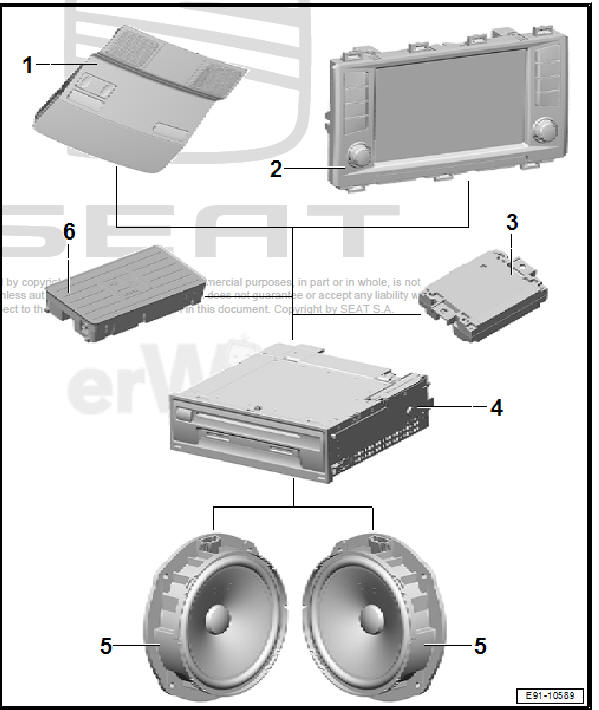

Structure - Telephone, versions with control unit 1 for information electronics - J794-
- - Telephone microphone -
R38-
- Assembly overview
- Removal and installation
- - Display unit for front information
display and operating
unit control unit - J685-
- Removal and installation
- - Control unit for stabilising
the transmission and reception
quality - R308-
- Removal and installation
- - Control unit 1 for information
electronics - J794-
- Removal and installation
- - Sound system
- Removal and installation
- - Mobile charging cradle -
R265-
- Removal and installation
Telephone system
...
Assembly overview - microphone unit
Exploded view - Microphone unit , vehicles without anti-theft alarm
- Telephone microphone -
R38-
Removal and installation
- Front interior light - W1-
housing.
- Front interior ...
