Seat Leon >> Location overview - Antenna systems

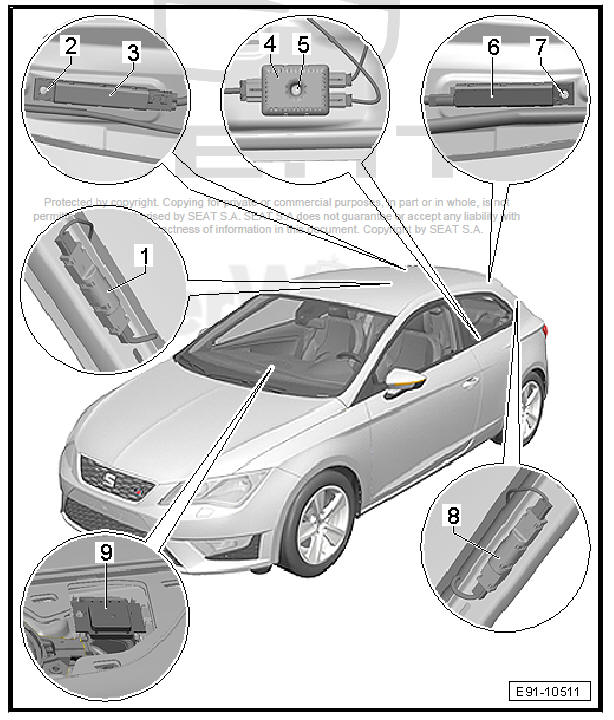

Location overview - Antenna systems, 2-door vehicle

Communication

  1. - Frequency modulation (FM) frequency filter in positive wire - R179-
    • Removal and installation
  2. - Screw
    • 2 Nm
  3. - Aerial amplifier 2 - R111-
    • Removal and installation
  4. - Frequency filter for the amplitude modulation (AM) - R177-
    • Removal and installation
  5. - Screw
    • 2 Nm
  6. - Aerial amplifier - R24-
    • Removal and installation
  7. - Screw
    • 2 Nm
  8. - Frequency modulation (FM) frequency filter in negative wire - R178-
    • Removal and installation
  9. - GPS aerial - R50-

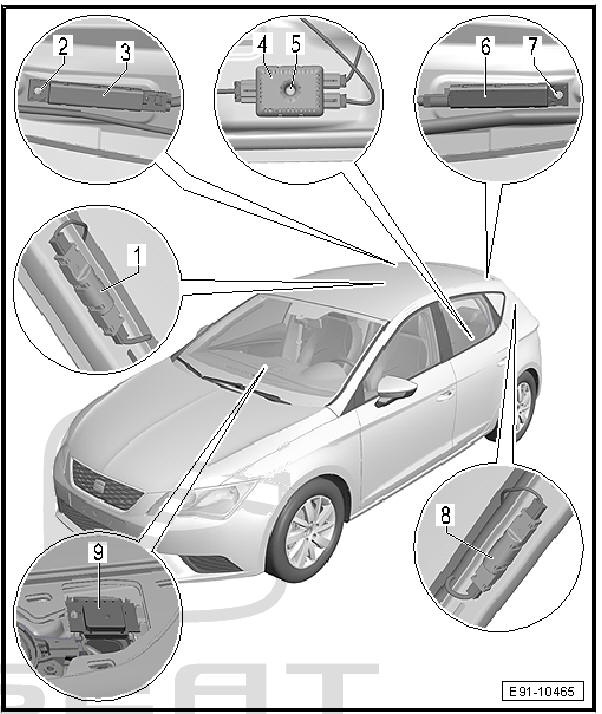

Location overview - Antenna systems, 4-door vehicle

Communication

  1. - Frequency modulation (FM) frequency filter in positive wire - R179-
    • Removal and installation
  2. - Screw
    • 2 Nm
  3. - Aerial amplifier 2 - R111-
    • Removal and installation
  4. - Frequency filter for the amplitude modulation (AM) - R177-
    • Removal and installation
  5. - Screw
    • 2 Nm
  6. - Aerial amplifier - R24-
    • Removal and installation
  7. - Screw
    • 2 Nm
  8. - Frequency modulation (FM) frequency filter in negative wire - R178-
    • Removal and installation
  9. - GPS aerial - R50-
