Seat Leon >> Overview of fitting locations - control units

SEAT Leon Service and Repair Manual / Electrical system / Wiring / Control units / Overview of fitting locations - control units

Wiring

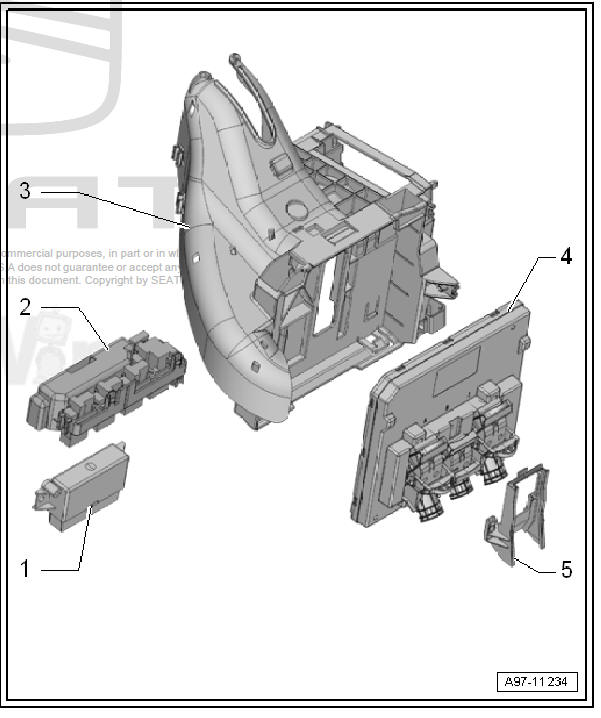

  1. - Parking aid control unit - J446-
    • Removal and installation
  2. - Remove and install the control unit holder for the parking assist - J446-
    • Removal and installation
  3. - Mount for on board system control module - J519-
    • Removal and installation
  4. - Onboard supply control unit - J519-
    • Removal and installation
  5. - Rail
    • For electrical connector (centre)

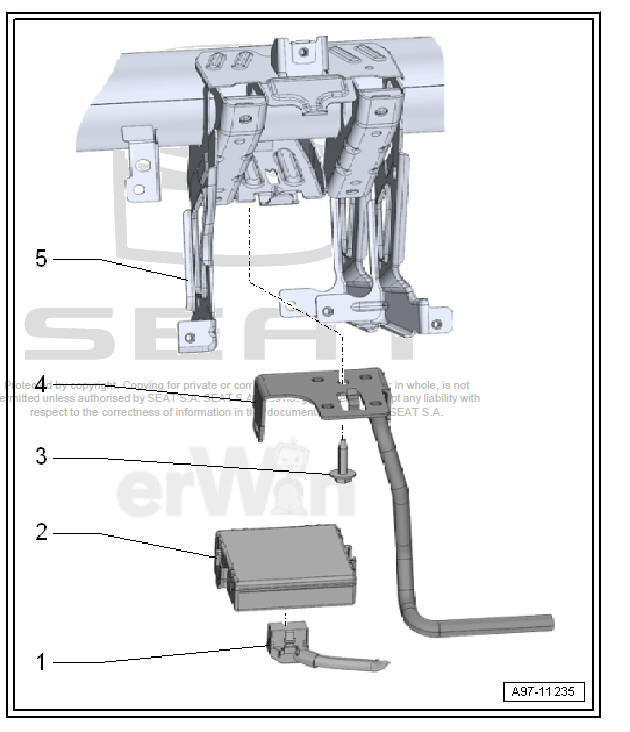

Assembly overview - data bus diagnostic interface

Wiring

  1. - Electric connector
    • For data bus diagnostic interface - J533-
  2. - Diagnostic interface for data bus - J533-
    • Removal and installation
  3. - Screw
    • Tightening torque
  4. - Crash bar
    • Installation overview
  5. - Central tube of the dash panel
    Control unit for the onboard network - J519- : removal and fitting
    Control unit for the onboard network - J519- : removal and fitting Removing Switch off ignition and all electrical consumers. Vehicles without access and start authorisation system Remove ...
