Seat Leon >> Overview of fitting locations - relay carriers, fuse carriers, electronics boxes
SEAT Leon Service and Repair Manual / Electrical system / Wiring / Relay carrier, fuse holder, E-boxes / Overview of fitting locations - relay carriers,
fuse carriers, electronics boxes

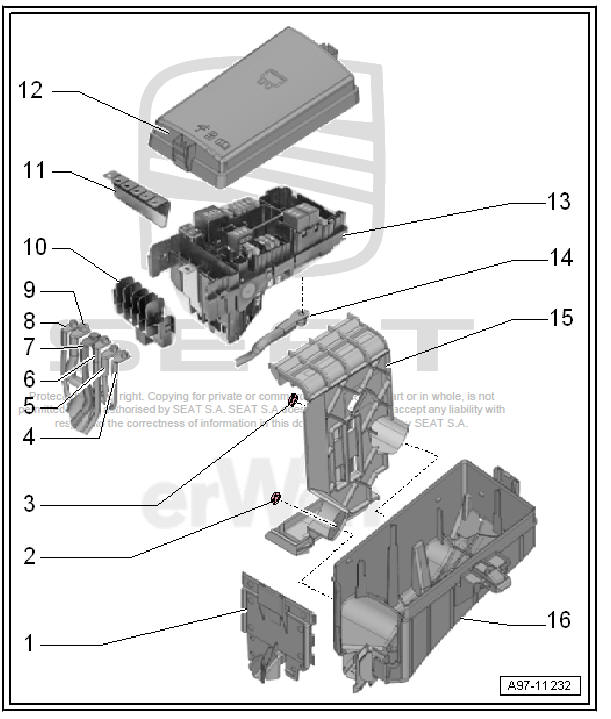

Installation site overview - fuse box, E-boxes in the engine compartment
- - Cover (front)
- For electronics box (engine compartment)
- - Nut
- 9 Nm
- - Nut
- 9 Nm
- - Lines
- For radiator fan(s)
- 4.5 Nm
- - Lines
- For terminal 30
- 4.5 Nm
- - Lines
- For electromechanical power steering
- 4.5 Nm
- - Lines
- For battery B+
- 6 Nm
- - Lines
- For terminal 30
- 4.5 Nm
- - Lines
- For the alternator
- 6 Nm
- - Fuse holder A - SA-
- Removal and installation
- - Securing bar
- Removal and installation
- - Cover
- For electronics box (engine compartment)
- - Relay carrier and safety bracket B - SB-
- With connecting bar for fuse holder A
- Removal and installation
- - Lines
- 6 Nm
- - Bracket/bearing/support
- For engine control unit
- - Electronics box in the engine compartment
- Removal and installation

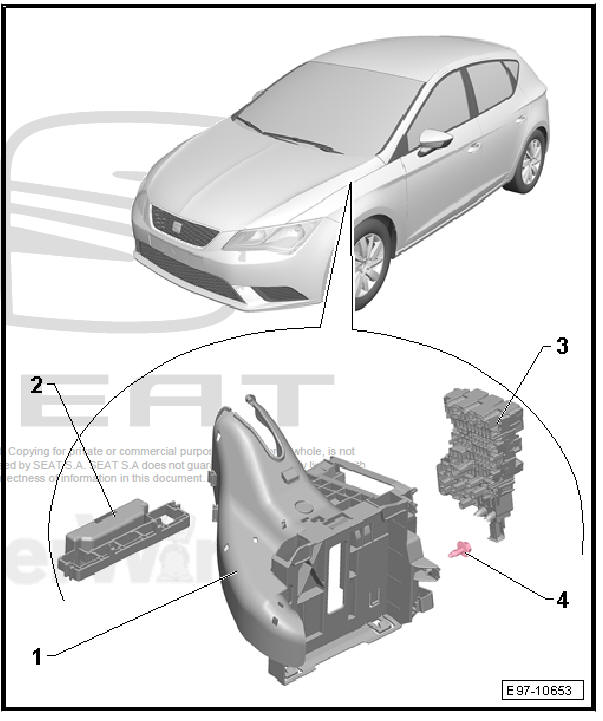

Installation site overview - fuse box, E-boxes in the engine compartment, A-column on left hand drive
- - Mount for on board system
control module - J519-
- Removal and installation
- - Remove and install the control
unit holder for the parking
assist - J446-
- Removal and installation
- - Fuse holder C - SC-
- Removal and installation
- - Screw
- 3 units.
- 3 Nm
Removing and installing electronics box
(E-box)
Removing
With the ignition switched off, disconnect battery earth cable.
Remove air filter housing.
Diesel engine
Remove the engine control unit and lay to the side with connected
plugs ...
