Seat Leon >> Cigarette lighter, socket

Assembly overview - cigarette lighter, 12 V socket

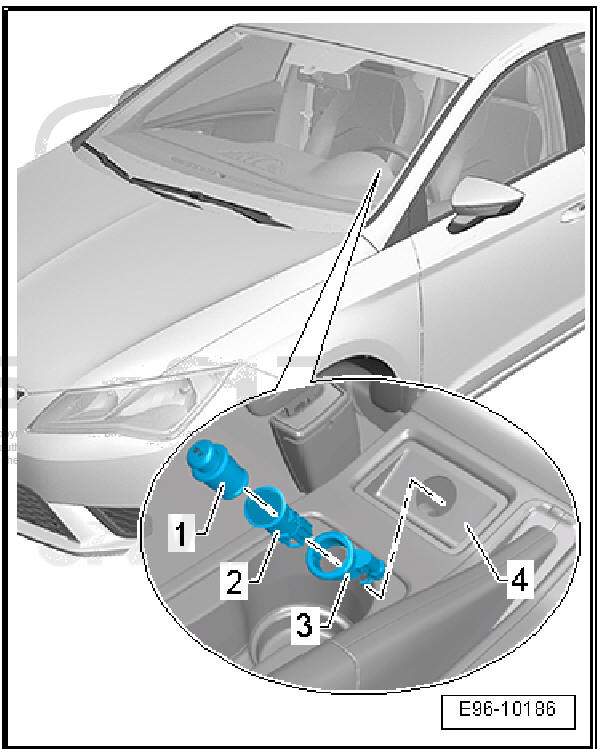

Assembly overview - cigarette lighter, 12 V socket, Leon, Leon SC

Lights, bulbs, switches - interior

  1. - Cigarette lighter - U1- or cover of the 12-V-socket - U5-
  2. - Housing for cigarette lighter - U1- or 12-V-socket - U5-
    • Removal and installation
  3. - Cigarette lighter illumination bulb - L28- or lamp for the 12 V socket - U5-
    • Removal and installation
  4. - Centre console (front)

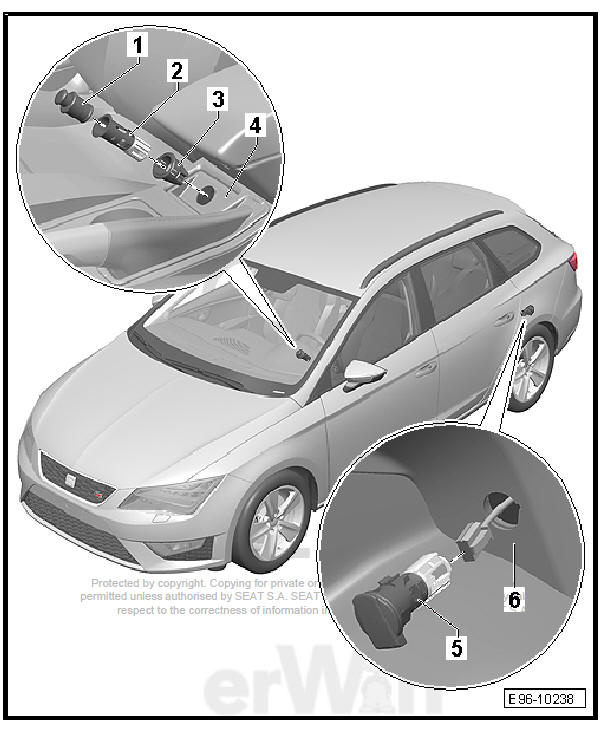

Assembly overview - cigarette lighter, 12 V socket, Leon ST

Lights, bulbs, switches - interior

  1. - Cigarette lighter - U1- or cover of the 12-V-socket - U5-
  2. - Housing for cigarette lighter - U1- or 12-V-socket - U5-
    • Removal and installation
  3. - Bulb for cigarette lighter light - L28- or bulb for socket lighting - L42-
    • Removal and installation
  4. - Centre console (front)
  5. - 12-V socket - U5-
    • Removal and installation
  6. - Left-hand storage compartment holder

Removing and installing cigarette lighter - U1-

Note All instructions and references for this chapter are found under.

Removing and installing socket illumination bulb - L42-

Note All instructions and references for this chapter are found under.

Removing and installing rear cigarette lighter illumination bulb - L32-

Note All instructions and references for this chapter are found under.

Removing and installing - U- socket

Note All instructions and references for this chapter are found under .
