Seat Leon >> Lane change assist

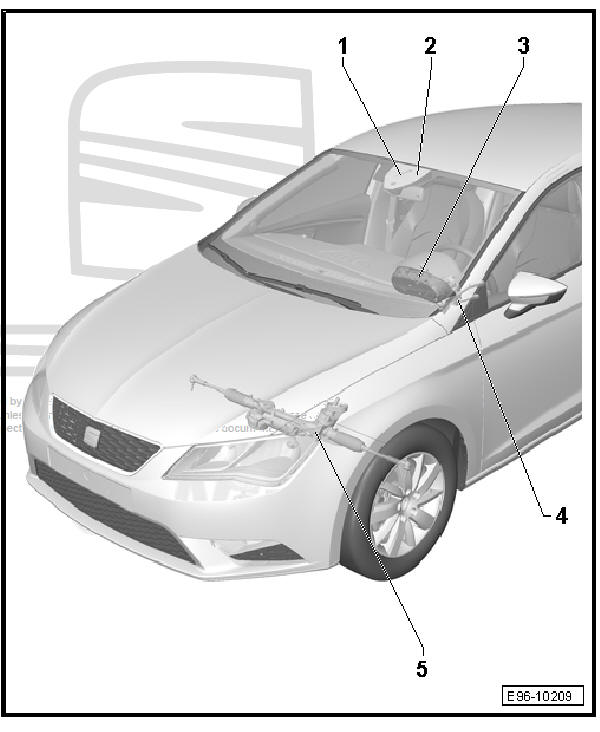

Overview - lane change assist

Lights, bulbs, switches - interior

  1. - Front camera for driver assist systems - R242-
    • Removal and installation
  2. - Windscreen heater for sensors, front - Z113-
    • Installation location: in interior mirror support
    • The Windscreen heater for sensors, front - Z113- is integrated in the retaining plate that is stuck on the windscreen and cannot be replaced separately. In the event of damage, the windscreen must be replaced
  3. - Instrument cluster
    • Removal and installation
  4. - Switch module of the steering column
    • Activation of the lane change assist occurs using the driver assistance system button - E617- .
    • Removal and installation
  5. - Steering box
