Seat Leon >> Removing and installing anti-theft alarm sensor - G578-
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Anti-theft alarm system / Removing and installing anti-theft alarm
sensor - G578-
Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles
- Remove front roof module.

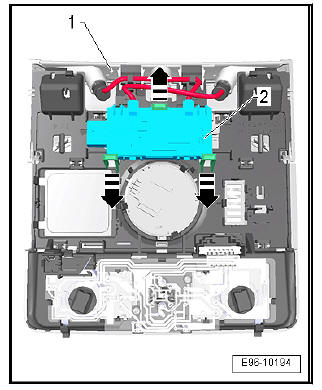

- Release retaining tabs -arrows- and remove anti-theft alarm sensor - G578- -item 2- from roof module -1-.

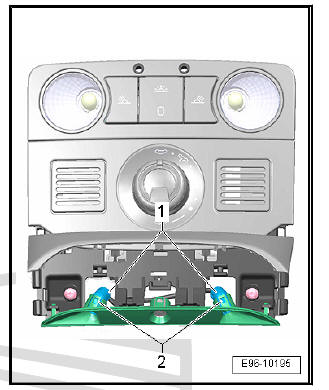

- Release retaining tab -2- and remove individual sensor -1- (left and right) from roof module.
Installing
Installation takes place in reverse order.
Removing and installing interior monitoring and vehicle inclination sensor - E616-
Special tools and workshop equipment required

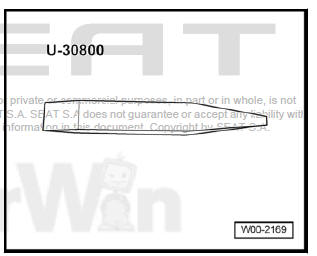

- Lever - U30800-
Note The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.
Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles

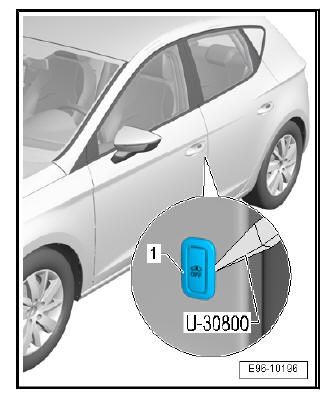

- Carefully lever off the button for deactivating interior monitoring and vehicle inclination sensor - E616- -1- using the lever - U30800- .
- Release and detach the plug connector -arrow- and remove button.
Installing
Installation takes place in reverse order.
