Seat Leon >> Installing and removing the mirror adjustment switch E43 / E168

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Installing and removing the mirror adjustment switch E43 / E168

Special tools and workshop equipment required

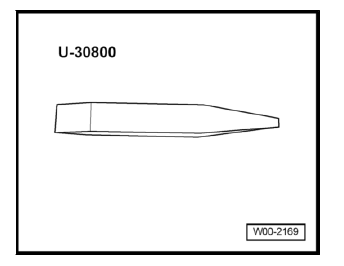

  • Lever - U30800-

Note

  • The switch module may vary, depending on equipment. Installation and removal of the switch module is identical and only one of the switch modules is described. The switch module cannot be removed after installation.
  • The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove front door trim .

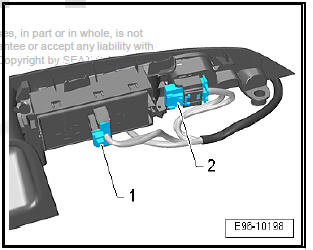

  • Disconnect plug connectors -1- and -2-.

Lights, bulbs, switches - interior

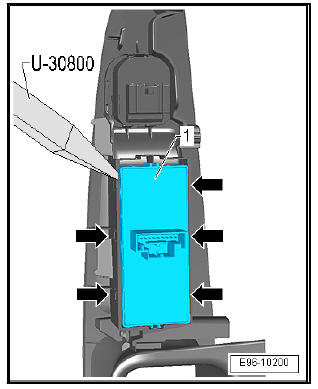

  • Carefully remove the snap arm -arrow- using the lever - U30800- from the installation frame and take out the switch -1- for the mirror adjustment.

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - interior

Installation and removal of the operating unit for window regulator in driver door E512

Special tools and workshop equipment required

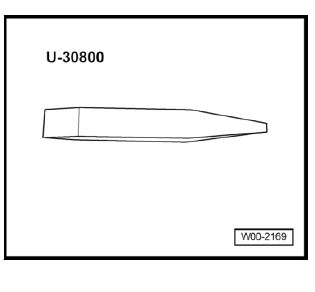

  • Lever - U30800-

Note

  • The switch module may vary, depending on equipment. Installation and removal of the switch module is identical and only one of the switch modules is described. The switch module cannot be removed after installation.
  • The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove front door trim .

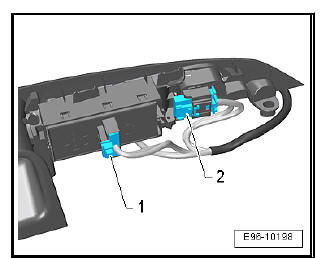

  • Disconnect plug connectors -1- and -2-.

Lights, bulbs, switches - interior

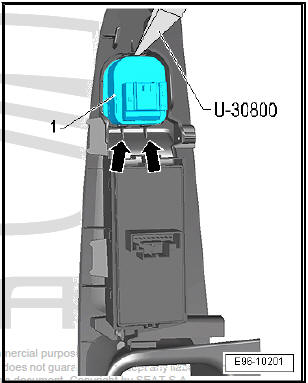

  • Carefully release the locking tabs -arrows- from the mounting frame using lever - U30800- and remove the window lifter switch assembly.

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - interior
