Seat Leon >> Removing and installing storage compartment illumination bulb - L120-
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lights / Removing and installing storage compartment
illumination bulb - L120-
If the centre console light with LED has a defect, the lighting should be changed.
Special tools and workshop equipment required

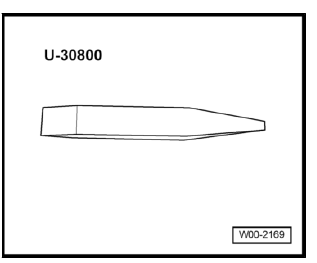

- Lever - U30800-
Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles
- Removing the air conditioning block.

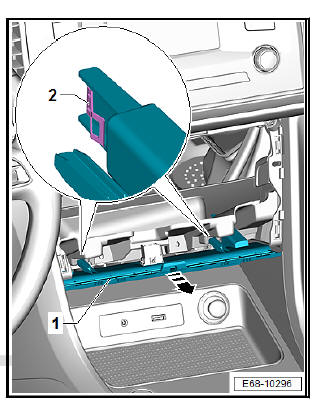

- Detach the trim -1- -direction of arrow-.
- Release electrical connector and separate from the lights in the centre console.
- Press on the fasteners -arrows- and remove ambient lighting -1- from the cover of the storage compartment in the centre console.
Installing
Installation takes place in reverse order.
