Seat Leon >> Remove and install footwell light W9 / W10

Special tools and workshop equipment required

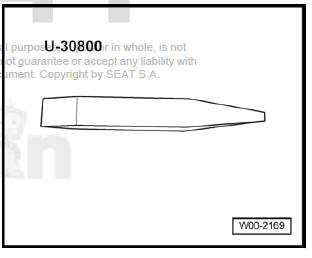

  • Lever - U30800-

Lights, bulbs, switches - interior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

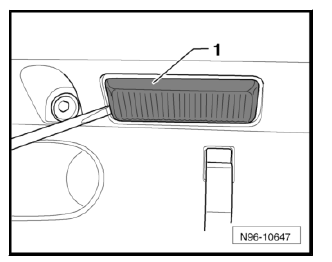

  • Footwell light, left side - W9- or Footwell light, right side - W10- -1-, carefully lever out using the lever - U30800- .

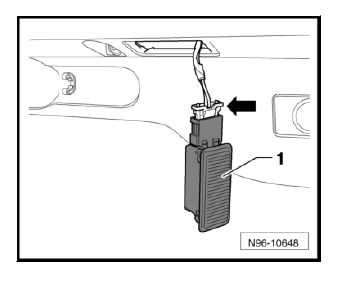

  • Disengage and disconnect the plug connector -arrow- and remove the footwell light, left side - W9- or footwell light, right side - W10- .

Installing

Installation takes place in reverse order.

Removing and installing front footwell light bulb L151 / L152

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove footwell light, left side - W9- / Footwell light, right side - W10- .

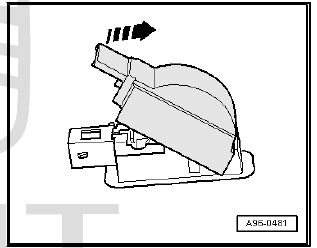

  • Carefully prise off cover over bulb -arrow-.

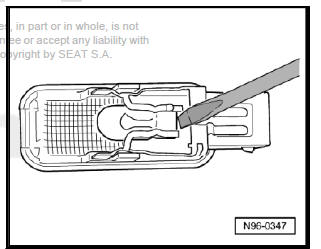

  • Carefully pry bulb out of bulb holder.

Lights, bulbs, switches - interior

Removing and installing central locking deadlock function warning lamp -SAFE- - K133-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove door trim .

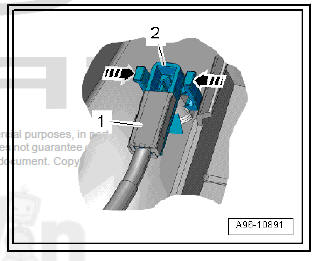

  • Release retaining clips -arrows-.
  • Remove LED -1- for central locking downwards out of door trim -2-.

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - interior

Removing and installing selector lever display unit - Y26-

Note The selector lever position display - Y26- -1- is integrated in the selector lever gaiter and cannot be removed individually.

  • Removing and installing selector cover .
