Seat Leon >> Installing and removing the power module for headlight J667 / J668

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Headlamps / Installing and removing the power module for headlight J667 / J668

Installing and removing the power module for headlight J667 / J668, left side

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove headlight .

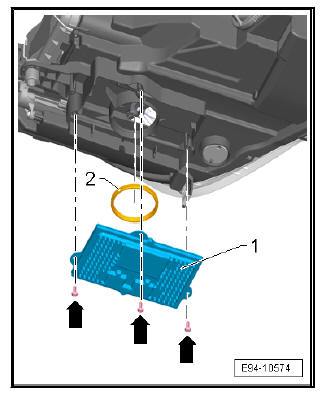

  • Unscrew bolts -arrows-.
  • Detach control unit -1- from headlight.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior

Installing and removing the power module for headlight J667 / J668, right side

Removing

  • Remove the lower engine noise insulation .

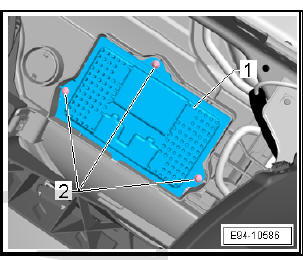

  • Remove bolts -2-.
  • Detach control unit -1- from headlight.

Installing

  • Installation is carried out in the reverse sequence; note the following:
  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior

Removing and installing left LED module for daytime driving light and side light - L176- / right LED module for daytime driving light and side light - L177-

Note The illustrations show the replacement of the left LED module for daylight driving light and side light - L176- of the left headlight.

The replacement of the right LED module for daylight driving light and side light - L177- of the right headlight follows the same procedure.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

Remove left headlight.

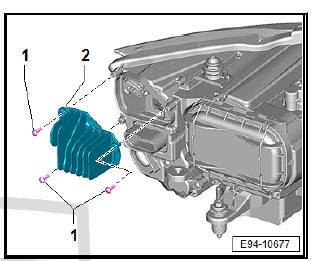

Remove the three securing bolts -1- of the left LED module for daylight driving light and side light - L176- .

  • Pull the left LED module for daylight driving light and side light - L176- -2- out of the headlight.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior
