Seat Leon >> Installing repair kit for headlight housing

Note

  • Broken-off headlight retaining tabs can be renewed by installing repair kit. Therefore there is no need to replace the entire headlight.
  • Different repair kits are available for both left and right side headlights.

Operation process

  • Remove headlight with broken retaining tabs.
  • Remove remaining parts of broken retaining tabs from headlight housing.

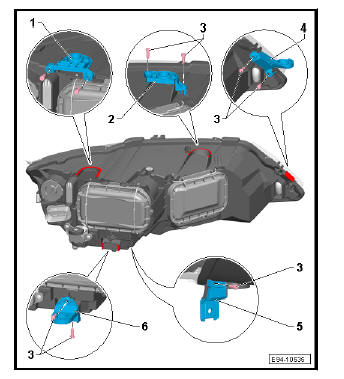

  • Mount the fixing tags -1-, -2-, -4-, -5- and -6- of the repair set on the headlight housing and fix in place with the screws -3-.

Specified torques

Component Nm
Lug fixing screws 4.5

Lights, bulbs, switches - exterior

Changing headlights over from driving on right to driving on left

Adjusting the halogen headlamps: Countries with left-hand drive traffic for driving in countries with right-hand drive traffic or viceversa

No adjustments need to be made to the headlights when travelling in countries where the vehicle is driven on the other side of the road.

Adapting the full LED headlight: Countries with left-hand drive traffic for driving in countries with right-hand drive traffic or viceversa

No adjustments need to be made to the headlights when travelling in countries where the vehicle is driven on the other side of the road.

Changing headlights over from driving on left to driving on right

Halogen headlight adaptation: Countries with driving on left to driving in countries with driving on right

No adjustments need to be made to the headlights when travelling in countries where the vehicle is driven on the other side of the road.

Full LED headlight adaptation: Countries with driving on left to driving in countries with driving on right

No adjustments need to be made to the headlights when travelling in countries where the vehicle is driven on the other side of the road.
