Seat Leon >> Removing and installing headlight washer system V11 pump

SEAT Leon Service and Repair Manual / Electrical system / Windscreen wash/wipe system / Headlamp washers / Removing and installing headlight washer system V11 pump

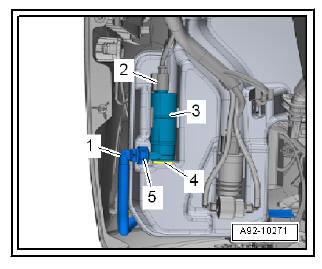

Installing and removing the headlight washer system V11 pump, vehicles without additional left cooler

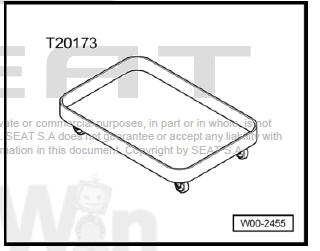

Special tools and workshop equipment required

  • Rear shelf - T20173-

Windscreen wash/wipe system

Removing

  • Place the vehicle on a lifting platform.
  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the left front wheel.
  • Remove the spoiler on the front left wheel well .
  • Unplug the electrical connector -2-.
  • Place below the collecting tray - T20173- .
  • Separate the hose line for water -1- from the headlight washer system pump - V11- -3- by pressing the unlocking tab -5-.
  • Lift headlight washer system pump out of washer fluid reservoir.

Windscreen wash/wipe system

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check sealing grommet -4- for damage.

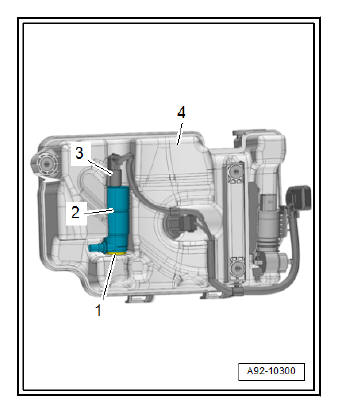

Installing and removing the headlight washer system V11 pump, vehicles with additional left cooler

Removing

  • Remove washer fluid reservoir.
  • Unplug the electrical connector -3-.
  • Lift headlamp washer system pump -2- out of washer fluid reservoir -4-.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check sealing grommet -1- for damage.

Windscreen wash/wipe system

    Assembly overview - headlight washer system
    Assembly overview - headlight wiper system, vehicles without additional left cooler - Flexible hose - Headlamp washer pump - V11- Removal and installation - Windscreen and head ...

    Removing and installing spray jets
    Special tools and workshop equipment required Rear shelf - T20173- Hose clamps, up to Ø 25 mm - 3094- Lever - U30800- Removing Switch off ignition and all electrical cons ...
