Seat Leon >> Removing and installing wiper arms

Special tools and workshop equipment required

  • Tool kit for wiper arms - T10369-

Windscreen wash/wipe system

Removing

Caution

Risk of damage to wiper shafts

  • The wiper shafts can be damaged if you attempt to detach the wiper arms without using the puller - T10369/1- .

Note If the wiper motor needs to be run during repair work, the bonnet must be closed (voltage supply to wiper motor is cut off when bonnet is open).

  • Move windscreen wipers to service position.

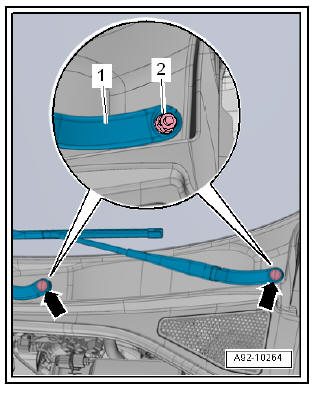

  • Pry cover caps -arrows- off wiper arms -1- with a screwdriver.
  • Slacken nuts -2- a few turns.

Windscreen wash/wipe system

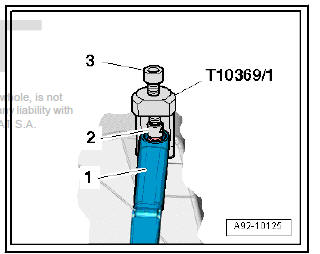

  • Apply puller - T10369/1- at wiper arm -1- as shown in illustration.
  • Apply thrust piece -2- at wiper shaft.
  • Turn bolt -3- clockwise until wiper arm is clear of wiper shaft.
  • Remove nuts and detach wiper arms.

Windscreen wash/wipe system

Installing

Caution

Risk of damage to body.

  • The wiper arms for driver's and front passenger's side have different lengths.

Installation is carried out in the reverse sequence; note the following:

  • Adjust windscreen wiper arms
