Seat Leon >> Assembly overview - horn

Assembly overview - Horn, vehicles with horns on the right longitudinal chassis beam

Gauges, instruments

  1. - Bracket/bearing/support
    • Removal and installation
  2. - Nuts
    • 13 +- 2 Nm
  3. - Nut
    • 10 +- 2 Nm
  4. - Horns
    • Removal and installation
  5. - Electric connector

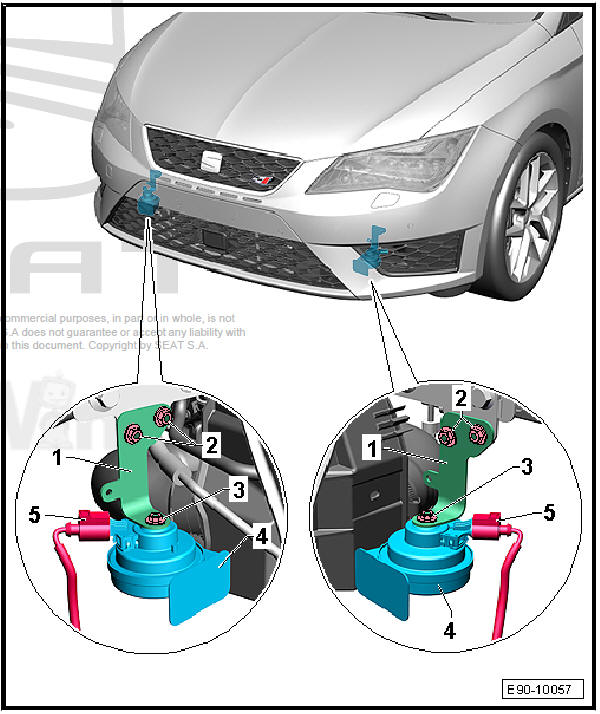

Assembly overview - Horn, vehicles with horns on both longitudinal chassis beams

Gauges, instruments

  1. - Bracket/bearing/support
    • Removal and installation
  2. - Nuts
    • 13 +- 2 Nm
  3. - Nut
    • 10 +- 2 Nm
  4. - Horns
    • Removal and installation
  5. - Electric connector
