Seat Leon >> Assembly overview - starter

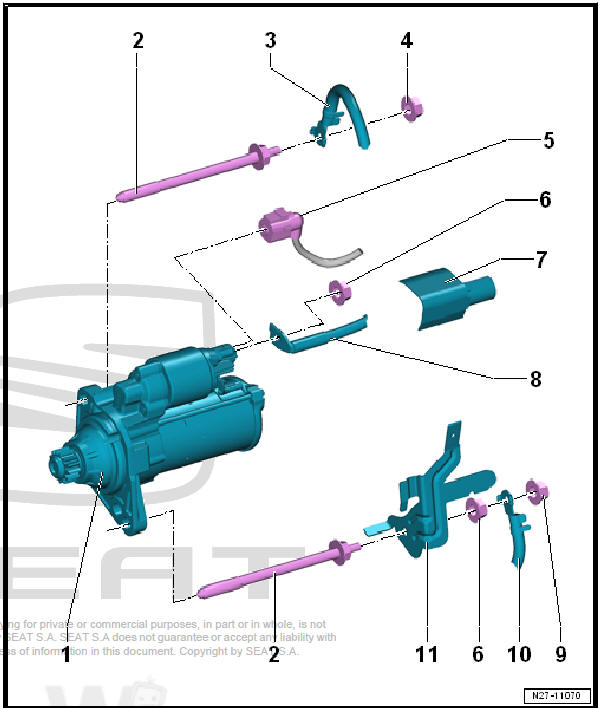

Exploded view - starter, vehicles with manual gearbox

Starter, current supply, CCS

  1. - Starter: - B-
    • Removal and installation
  2. - Screw
    • 80 Nm
  3. - Earth wire
    • Depending on equipment
  4. - Nut
    • Depending on equipment
    • 20 Nm
  5. - Electric connector
  6. - Nut
    • 20 Nm
  7. - Cover
  8. - Terminal 30/B+
  9. - Nut
    • Depending on equipment
    • 20 Nm
  10. - Earth wire
    • Depending on equipment
  11. - Bracket/bearing/support
    • For the cable harness

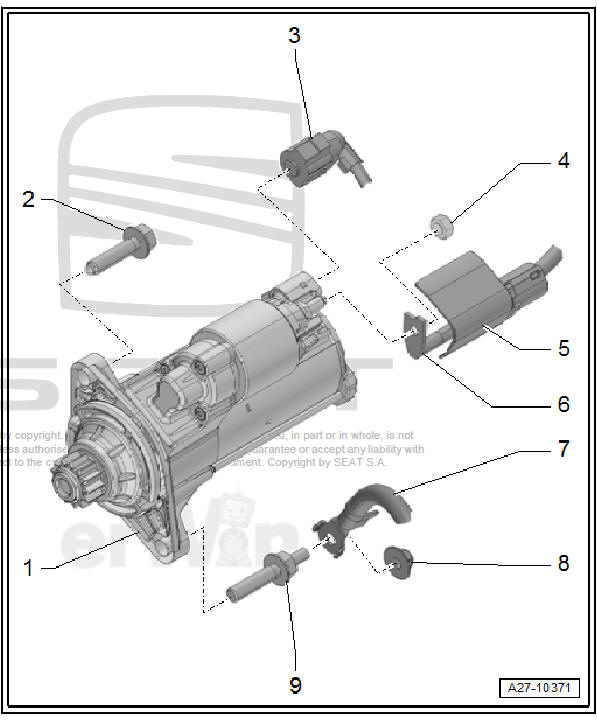

Exploded view - starter, vehicles with dual clutch gearbox

Starter, current supply, CCS

  1. - Starter:
    • Removal and installation
  2. - Screw
    • 80 Nm
  3. - Electric connector
  4. - Nut
    • 20Nm
  5. - Cap
  6. - Terminal 30/B+
  7. - Earth wire
  8. - Nut
    • 23 Nm
  9. - Screw
    • 80 Nm
    Starter
    ...

    Starter motor: removing and installing
    Installing and removing the starter, manual transmission, gasoline engine Special tools and workshop equipment required Torque wrenches - VAG 1331- Torque wrenches - VAG 1332- Remov ...
