Voltage regulator: removing and installing - manufacturer: Bosch .

Special tools and workshop equipment required

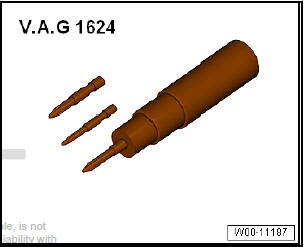

• Torque screwdriver - V.A.G 1624-

Removing

• Remove alternator
• Carefully lever off protective cap -1- from alternator - C- .

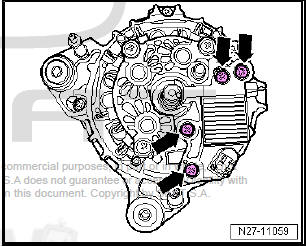

• Unscrew securing bolts -arrows- for voltage regulator - C1- .
• Remove voltage regulator - C1- from alternator - C- .

Installing

Installation is carried out in the reverse sequence; note the following:

Specified torques

Voltage regulator: removing and installing, manufacturer: Valeo .

Removing

• Remove alternator.

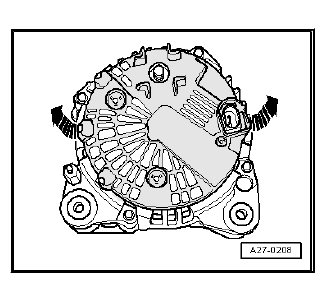

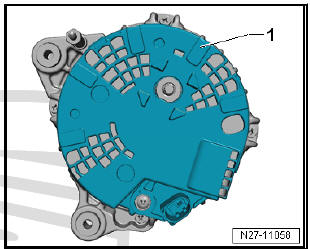

• Disengage cover of rear part of alternator from studs -arrows-.

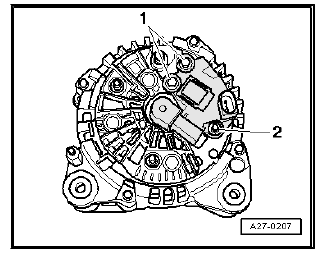

• Unscrew bolt -1- and double bolt -2-.
• Remove voltage regulator.

Installing

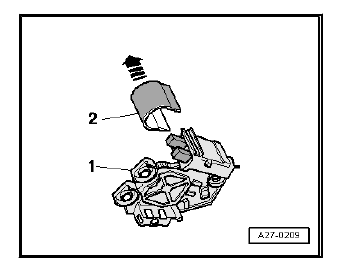

• Remove protective cap -2- of voltage regulator -1- by pressing in -direction of arrow-.
• When fitting the voltage regulator, take care that the brushes are correctly applied to the contact surfaces.
• Reattach protective cap on installed voltage regulator.

Perform remaining installation in reverse order of removal.
