Seat Leon >> Exploded view - noise insulation

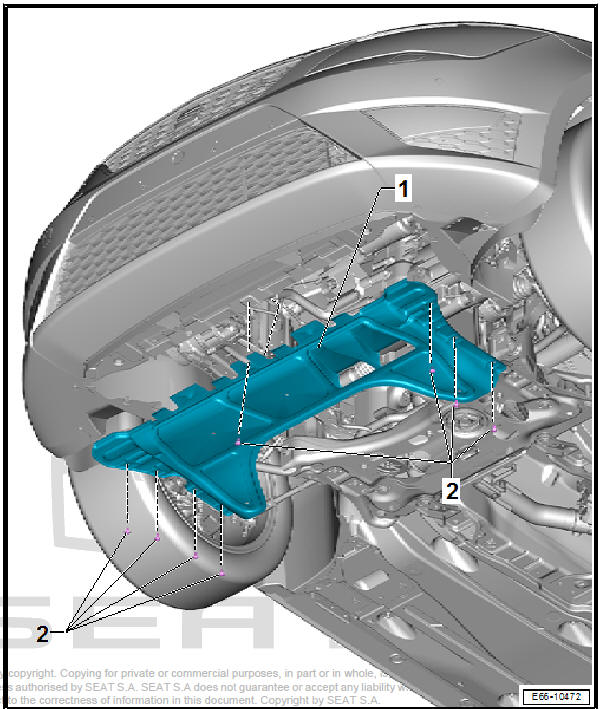

Assembly overview - short noise insulation

Note During removal and installation, take note of small amounts of differences depending on the engine.

Exterior equipment

  1. - Short noise insulation
  2. - Bolt.
    • 8 off
    • 2 Nm

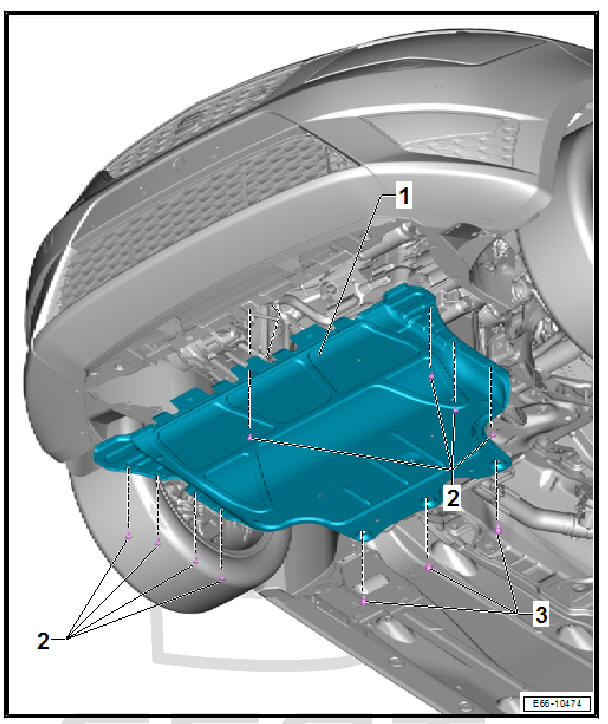

Assembly overview - long noise insulation

Note During removal and installation, take note of small amounts of differences depending on the engine.

Exterior equipment

  1. - Short noise insulation
  2. - Bolt.
    • 8 off
    • 2.0 Nm
  3. - Bolt.
    • Micro-encapsulated; renew after each removal
    • 3 off
    • 6 Nm

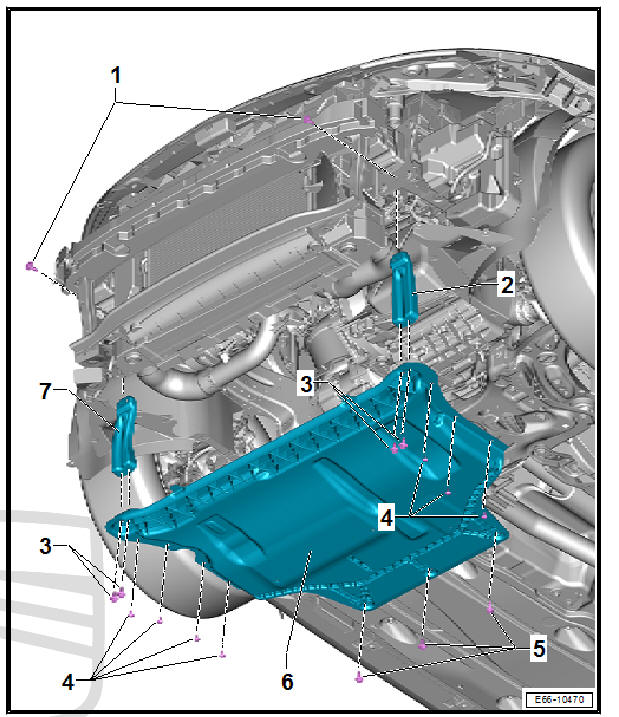

Assembly overview - skid plate

Note During removal and installation, take note of small amounts of differences depending on the engine.

Exterior equipment

  1. - Bolt.
    • Qty. 1 on each side
    • 20 Nm
  2. - Bracket, left underbody guard
  3. - Bolt.
    • Qty. 2 each on left and right
    • 20 Nm
  4. - Bolt.
    • 7 off
    • 2 Nm
  5. - Bolt.
    • Micro-encapsulated; renew after each removal
    • 3 off
    • 20 Nm
  6. - Underride guard
  7. - Bracket, right underbody guard
