Removing

• Remove lighting elements and front control unit .

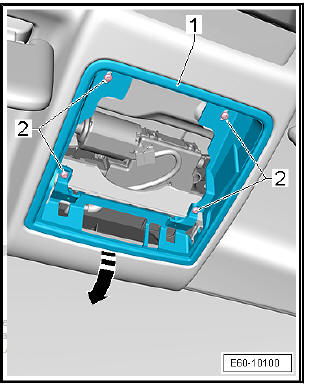

• Loosen bolts -2-.
• Remove the frame -1- in -the direction of arrow- out of the moulded headliner.

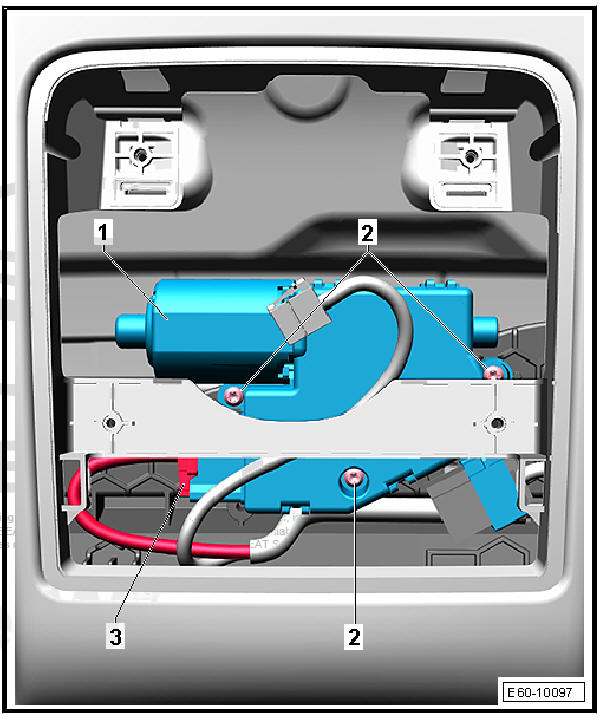

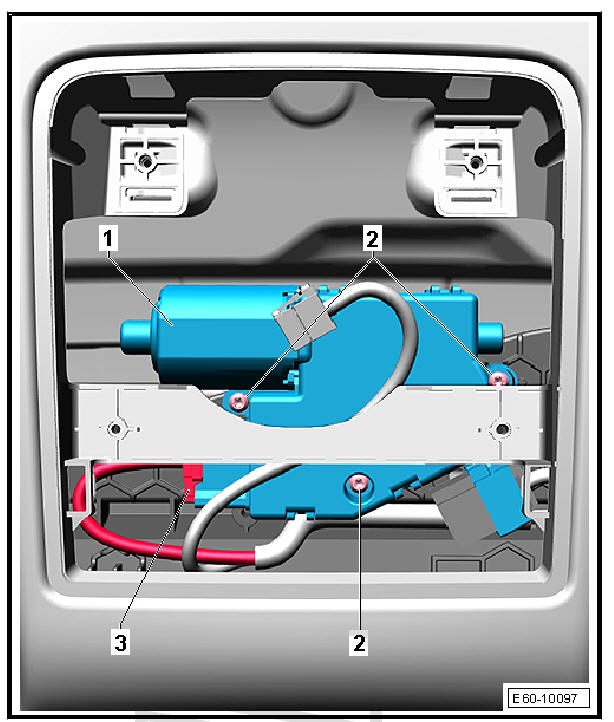

• Loosen bolts -2-.

• Remove sliding roof motor -1-.
• Separate electrical connection-3-.

fitting

With front glass panel removed:

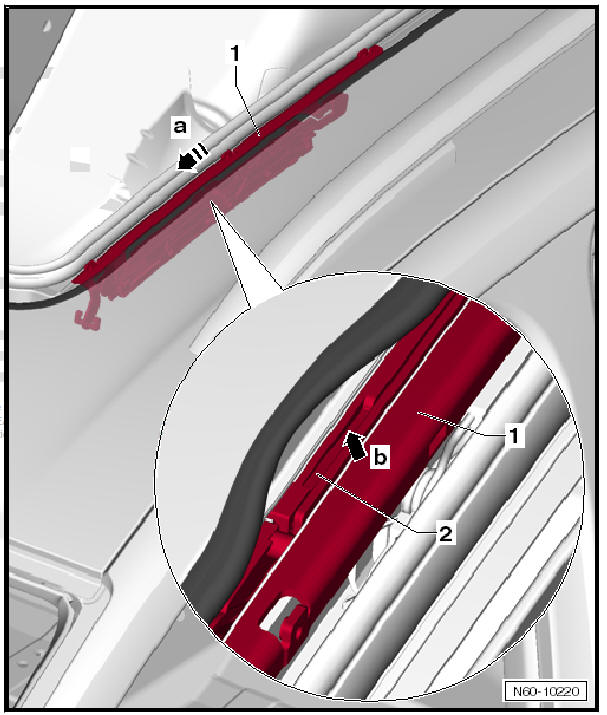

• Press the tilting mechanism -1- fully forwards -arrow a- on both sides until it is completely lowered.
• Push tilting mechanism only at indicated point -arrow- of slider -1- not at guide plate -2-.

Continue installation in reverse order.

Tightening torque for screws -2- of the sliding roof motor: 3.5 Nm

• On completion of all work, operate sliding roof motor to establish reference points.

Removing and installing sunroof roller blind control unit - J394-

Removing

• Remove moulded headlining .

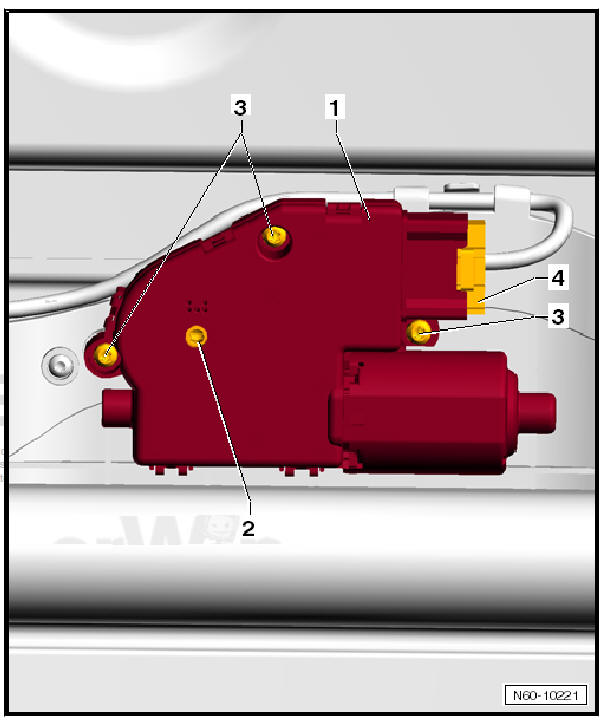

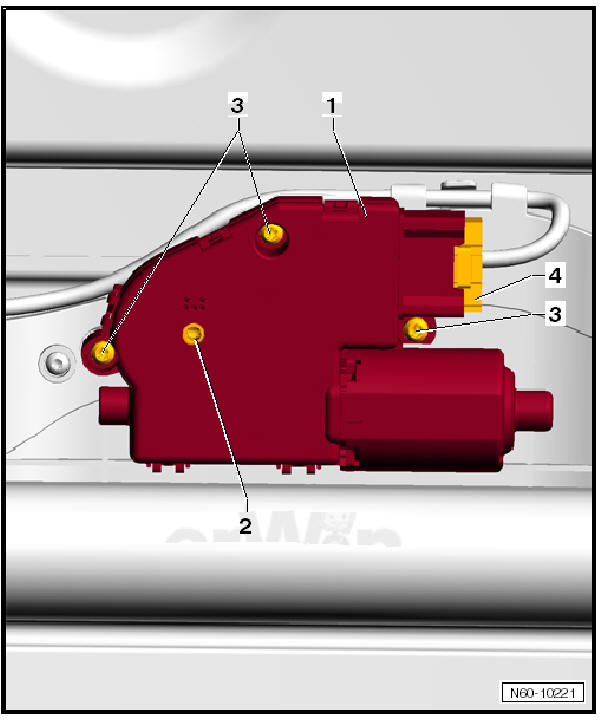

• Separate electrical connection-4-.
• Loosen bolts -3-.
• Remove sun blind motor -1-.

fitting

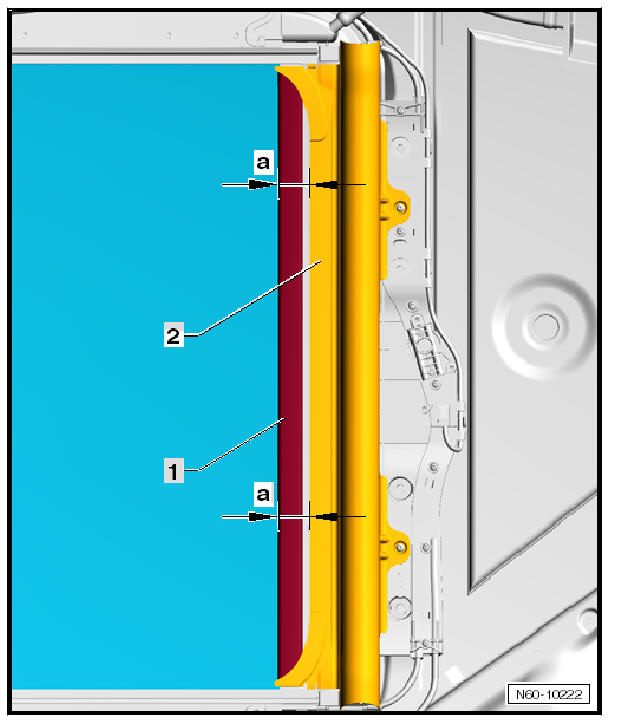

• Before installing motor, adjust sun blind by ensuring parallel distance -a- between sun blind cross strut -1- and sun blind housing -2-.

Continue installation in reverse order.

• Connect connector -4-.
• Tighten bolt -3- to specified torque 3.5 Nm
• On completion of all work, carry out normalisation run for sun blind motor
