Seat Leon >> Adjusting glass panel

Checking height adjustment

Note

  • Front glass panel must only be adjusted at front edge -1- and rear glass panel at rear edge -2-.
  • To achieve the best possible optical appearance, ensure that adjustments on left and right are as far as is possible uniform (symmetric).

Sunroof

Checking height adjustment

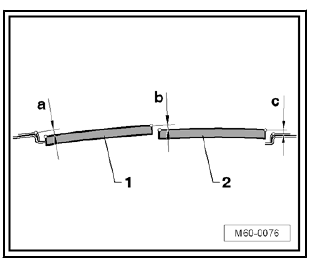

  • Using a depth gauge, check the setting of the front glass cover -1- and rear glass cover -2-.

If measured values differ from specifications, respective glass panel must be adjusted.

Adjusting front glass panel

Note The glass panel height adjustment is performed after the glass panel has been closed from slide open position.

  • Remove trims .

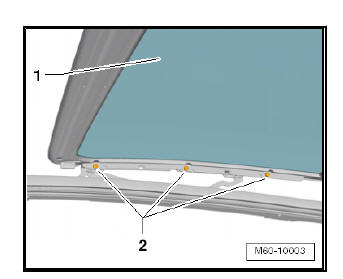

  • Only unscrew two front bolts -2- on the left and right,
  • Close glass panel.

Sunroof

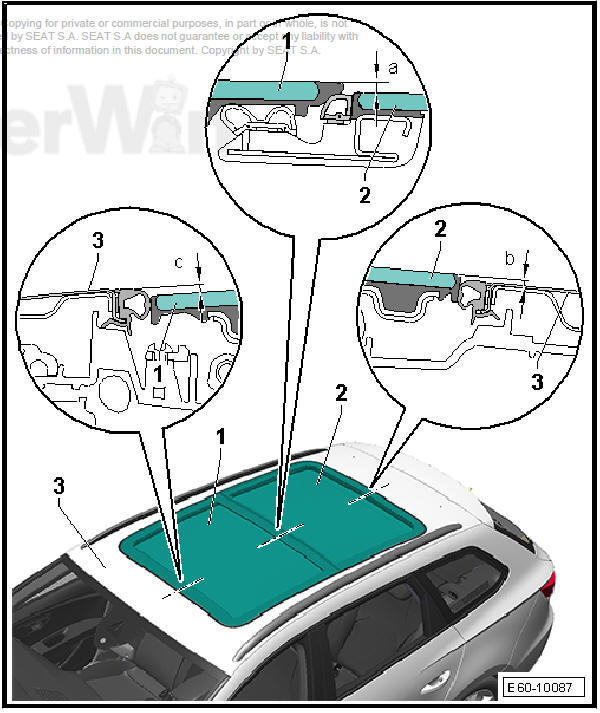

  • Adjust glass panel -1- according to illustration.
    • Dimension -a- : 1.7 +- 0.7 mm
    • Dimension -b-: 0.5 + 0.8 - 0.5 mm
  • Insert and tighten screws on left and right, 5 Nm.
  • Installing trim.

Adjusting rear glass panel

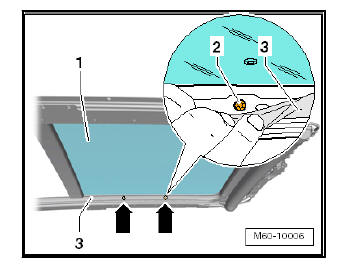

  • Pull inner seal -3- inwards slightly at indicated points -arrows- and undo bolts -2-.

Sunroof

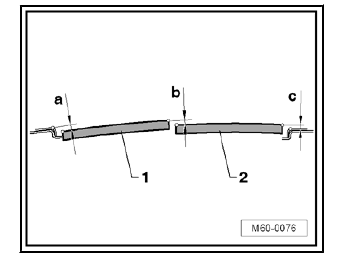

  • Adjust rear glass panel -2- according to illustration.
    • Dimension -c- : 0.8 +- 0.7 mm
  • Insert and tighten screws on left and right, 5 Nm.

    Removing and installing rear glass panel
    Removing Note To unscrew bolts, use a magnetic tool so that bolts do not fall into panoramic sliding roof guide. Operate front glass panel until it is in tilted-open position. Undo front s ...

    Removing and installing sliding panoramic sunroof seals
    Removing and installing exterior seal for rear glass panel Removing Pull seal -2- off rear glass panel -1- all round. Remove any adhesive residue with adhesive strip remover - VAS 6349- . ...
