Seat Leon >> Assembly overview - sliding sunroof

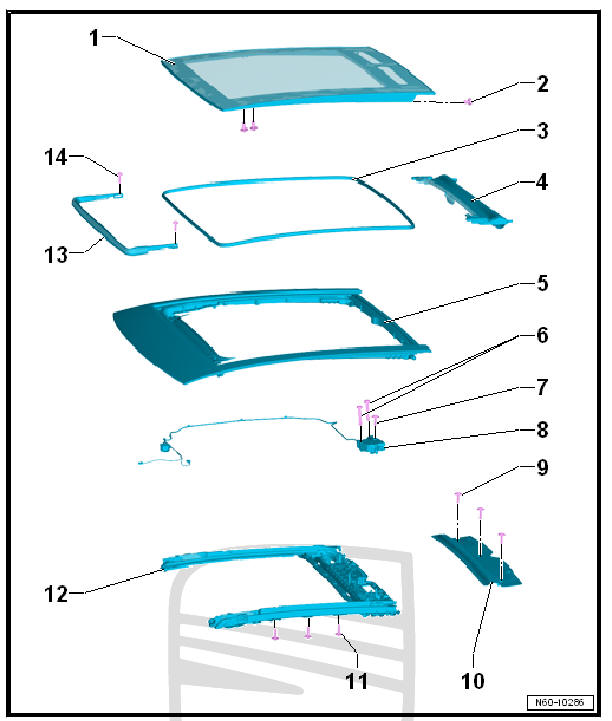

Sunroof

  1. - Glass panel for panorama tilting sunroof (single pane safety glass)
  2. - Bolt.
    • 5.5 Nm
  3. - Seal of sliding sunroof frame
  4. - Sliding sunroof roller blind
  5. - Sunroof frame
  6. - Bolt.
    • 3 off
    • 4 Nm
  7. - Bolt.
    • 3 off
    • 4 Nm
  8. - Sliding sunroof adjustment control unit - J245-
  9. - Bolt.
    • 5 off
    • 2.5 Nm
  10. - Cover

Removing

  • Removing the panoramic window. Proceed as follows:
    • Actuating motor for the functions.
    • The actuating motor for these functions is defective.
  • Remove bolts.
  • Remove the cover by pulling it in the direction of travel.

fitting

Fit in reverse order from removal, remembering the following:

Use the tightening torque of the screws.

  1. - Bolt.
  2. - Running guide
  3. - Wind deflector
  4. - Bolt.
    • 1.5 Nm

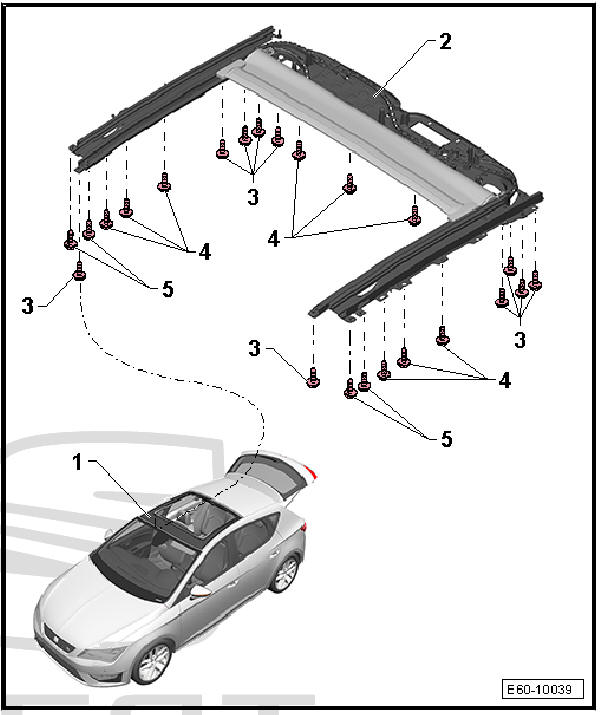

Assembly overview - Cranks and tilt mechanism

Sunroof

  1. - Sliding/tilting sunroof frame
  2. - Frame with operating mechanism
  3. - Bolt.
    • 10 off
  4. - Bolt.
    • 5 off
  5. - Bolt.
    • 4 off
    Sun roof
    ...

    Assembly overview - sliding sunroof sun blind
    - Tension bow - Sliding piece (bottom part) - Sliding piece (top part) This element has a spring on its right side - Spring 1x Only for the right side - Spring cov ...
