Seat Leon >> Coolant Level* / temperature
The warning lamp lights up if the coolant temperature is too high or if the coolant level is too low.
There is a fault if:
• The warning symbol does not go out again after a few seconds.
• The warning lamp lights up or flashes while the vehicle is moving, while
three acoustic warning signals are
emitted.
This means that either the coolant level is too low or the coolant temperature is too high.
Coolant temperature too high
The following text is displayed in the instrument panel display9): CHECK
COOLANT! INSTRUCTIONS MANUAL.
First look at the coolant temperature gauge. The coolant temperature is too
high if the needle is over the warning area on the dial. Stop the vehicle,
switch off the engine and wait for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction of the radiator fan. Check the radiator fan fuse and have it replaced if necessary.
If the warning lamp lights up again after driving on for a short distance, stop the vehicle and switch off the engine. Contact an Authorised Service Centre or a qualified workshop.
Coolant level too low The following text is displayed in the instrument panel display10): CHECK COOLANT! INSTRUCTION MANUAL.
First look at the coolant temperature gauge. If the needle is in the normal range, top up with coolant at the earliest opportunity .
WARNING
• If your vehicle is immobilised for any technical reasons, move it to a
safe distance from traffic. Turn off the engine, turn on the hazard lights and
place the warning triangle.
• Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.
• The engine compartment of any motor vehicle is a dangerous area!
Before carrying out any work in the engine compartment, switch off the
engine and allow it to cool down. Always note the corresponding warnings
Rear fog light
This warning lamp lights up when the rear fog light is switched on . Further information.
Turn signals
The warning lamp flashes when the turn signals are in operation.
Depending on which turn signal is operated, either the left or right indicator lamp flashes. Both warning lamps will flash at the same time when the hazard warning lights are switched on.
If one turn signal fails, the warning lamp will start flashing twice as fast.
Further information on the turn signals.
Trailer turn signals
This warning lamp also flashes when the turn signals are operated while towing a caravan or trailer.
The warning lamp flashes when the turn signals are operated, provided a trailer is correctly attached and connected to the vehicle.
The warning lamp will not flash if one of the turn signals on the trailer fails.
Main beam headlights
This warning lamp lights up when the main beams are on.
The warning lamp lights up when the main beams are on or when the headlight flasher is operated.
Further information.
Bulb defect
The warning lamp lights up when a bulb in the vehicle's exterior lighting is defective.
The warning lamp lights up when a bulb in the vehicle's exterior lighting (e.g. left-hand main beam) is defective.
The following text is displayed in the instrument panel display11): MAIN BEAM LEFT DEFECT.
Cruise control system*
The warning lamp comes on when the cruise control system is switched on.
The warning lamp lights up when the cruise control system is switched on.
Further notes on the cruise control system.
Washer fluid
This warning lamp lights up to indicate that the windscreen washer level is too low.
This serves as a reminder to fill up the reservoir at the earliest opportunity.
The information text displayed in the instrument panel display is12): REFILL WASHER FLUID
Brake system* / handbrake
The warning lamp lights up if the handbrake is applied, if the brake fluid level falls too low or if there is a fault in the brake system.
This warning lamp lights up
if
• If the handbrake is on
If you drive faster than 6 km/h with the handbrake on, the following message
will appear in the combi-instrument display13): HANDBRAKE ON. Also, an
audible warning is given.
• If the brake fluid level is too low
The following text is displayed in the instrument panel display13): STOP
BRAKE FLUID INSTRUCTIONS MANUAL.
• If there is a fault in the brake system
The following text is displayed in the instrument panel display13): BRAKE
FAULT INSTRUCTIONS MANUAL.
This warning lamp can light up together with the anti-lock brake system
warning lamp.
WARNING
• Before opening the bonnet, read and observe the warnings on “Working in the engine compartment”.
• If the brake warning lamp does not go out, or if it lights up when driving, the brake fluid level “Brake fluid” in the reservoir is too low. Risk of accident. Stop the vehicle and do not drive on. Obtain technical assistance.
• If the brake warning lamp lights up together with the ABS warning lamp , the control function of the ABS could be out of action. This could cause the rear wheels to lock quickly when you brake. This could cause the rear to break away. Risk of skidding. Drive carefully to the nearest qualified workshop and have the fault corrected.
Engine oil pressure
This warning lamp indicates that the engine oil pressure is too low.
If this warning symbol starts to flash, and is accompanied by three audible warnings, switch off the engine and check the oil level. If the oil level is too low, add more engine oil.
The following text is displayed in the instrument panel display14): STOP ENGINE OIL PRESSURE INSTRUCTIONS MANUAL. If the symbol flashes although the oil level is correct, do not drive on. The engine must not even run at idle speed. Obtain technical assistance.
Anti-lock brake system (ABS)
A warning lamp system monitors the ABS.
The warning lamp should light up for a few seconds when the ignition is switched on. It goes out again after the system has run through an automatic test sequence.
There is a fault in the ABS if:
• The warning lamp does not light
up when the ignition is switched on.
• The warning lamp does not go out again after a few seconds.
• The warning lamp lights up when the vehicle is moving.
The vehicle can still be braked in the normal way (except that the ABS control function will not function). Please take the vehicle to a qualified workshop as soon as possible. For further information on the ABS see the page 169.
If a fault occurs in the ABS, the ESP* warning lamp will also light up.
Brake system fault
If the ABS warning lamp lights up
together with the brake warning lamp
, this indicates not only a fault in
the ABS function, but also a possible fault
in the brake system .
WARNING
• Before opening the bonnet, read and observe the warnings on.
• If the brake warning lamp should
light up together with the ABS
warning lamp , stop the
vehicle immediately and check the brake fluid
level in the reservoir “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
• If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Drive carefully to the nearest qualified workshop
and have the fault corrected.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an Electronic Stabilisation Program (ESP)*
A malfunction in the EDL is indicated by the ABS warning lamp . Please take the vehicle to a qualified workshop as soon as possible. For further information on the EDL.
Traction control system (TCS)*
The traction control system prevents the driven wheels from spinning when the vehicle is accelerating
The warning lamp lights up when the ignition is switched on and should turn off after about 2 seconds.
When the TCS is operating while driving, the warning lamp flashes. If the system is deactivated or if there is any fault in the same, the warning lamp will remain lit.
It will also come on if a fault should occur in the ABS because the TCS operates in conjunction with the ABS. For further information.
Soot accumulation in the diesel engine particulate filter*
if the symbol lights, soot has built up in the diesel engine particulate filter due to continuous short trips. In this case, drive the vehicle at a constant speed of at least 60 km/h (with an engine speed of about 1400 rpm) for about 10 minutes. The increase in temperature generated may burn the accumulated soot in the filter.
If the symbol is not deactivated, bring the vehicle to a specialized workshop to repair the fault.
For more information on the diesel particulate filter.
WARNING
• The diesel engine particulate filter may reach extremely high temperatures; it should not enter into contact with flammable materials underneath the vehicle. Failure to comply could result in fire.
WARNING
• The diesel engine particulate filter may reach extremely high temperatures;
it should not enter into contact with flammable materials underneath
the vehicle. Failure to comply could result in fire.
Alternator
This warning lamp signals a fault in the alternator.
The warning lamp lights up when the ignition is switched on. It should go out when the engine has started running.
If the warning lamp lights up while driving, the alternator is no longer charging the battery. You should immediately drive to the nearest qualified workshop.
You should avoid using electrical equipment that is not absolutely necessary because this will drain the battery.
If the indicator flashes, the voltage is insufficient for normal vehicle operation.
Tyre pressure*

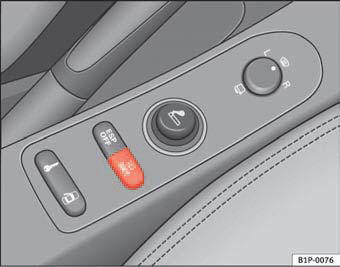

Fig. 47 Centre console: tyre monitor system button
The tyre monitor indicator compares wheel revolutions and uses this information to compare the diameter of each wheel using the ABS sensors. If the diameter of a wheel changes, the tyre monitor indicator lights . The wheel diameter changes when:
• Tyre pressure is insufficient.
• The tyre structure is damaged.
• The vehicle is unbalanced because of a load.
• The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).
• The vehicle is fitted with snow chains.
• The emergency wheel is fitted.
• The wheel on one axle is changed.
Tyre pressure adjustment
Following the modification to tyre pressure or changing one or more wheels,
the button fig. 47 must be kept pressed while the ignition is on, until an
acoustic signal is heard.
If the wheels are under excessive load (for example, driving with a trailer or heavy load), the tyre pressure must be increased to the recommended value for a full load (see the sticker on the inside of the fuel flap). If the tyre monitor system button is pressed the new tyre pressures are confirmed.
The tyre pressure monitor indicator
lights
If the tyre pressure of one wheel is much lower than the value set by the driver
then the indicator lights .
The tyre pressure monitor indicator
flashes
If the tyre pressure indicator flashes, this indicates a fault. Go to the
nearest
specialist workshop.
WARNING
• When the tyre pressure indicator lights, reduce speed immediately and
avoid any sudden manoeuvre or braking. Stop when possible, and check
the tyre pressure and status.
• The driver is responsible for correct tyre pressure. For this reason, tyre
pressure must be regularly checked.
• Under certain circumstances (for example, in a sports situation, in
winter conditions or on a dirt track) the tyre monitor indicator may light or
function incorrectly.
Note
If the battery is disconnected, the yellow indicator
lights after turning the
ignition on. This should turn off after a brief trip.
Engine management
This warning lamp monitors the engine management system for petrol engines.
The warning lamp (Electronic Power Control) lights up when the ignition is switched on to show that the lamp is working properly. It should go out when the engine has started running.
If a fault develops in the electronic engine management system while you are driving, this warning lamp will light up. Take the vehicle to an Authorised Service Centre as soon as possible and have the engine checked.
Glow plug system / Engine fault
The warning lamp lights up to show that the glow plugs are preheating. It flashes if there is an engine fault.
Warning lamp is lit
The warning lamp lights up while
the glow plugs are preheating. When the
warning lamp goes off, the engine should be started straight away.
Warning lamp flashes
If a fault develops in the engine management system while you are driving,
the glow plug lamp will flash . Take the vehicle to an Authorised Service
Centre as soon as possible and have the engine checked.
Emission control system*
This warning lamp monitors the exhaust system.
Warning lamp flashes:
when there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest qualified workshop to have the
engine checked.
The following text is displayed in the instrument panel display15) : EXHAUST FUMES GO TO WORKSHOP!
Warning lamp is lit:
if a fault has developed during driving which has reduced the quality of the
exhaust gas (e. g. lambda probe fault). Reduce speed and drive carefully to
the nearest qualified workshop to have the engine checked.
The following text is displayed in the instrument panel display: EXHAUST FUMES GO TO WORKSHOP!
Electronic stabilisation programme (ESP)*
This warning lamp monitors the electronic stabilisation program.
This program includes the ABS, EDL and TCS.
The warning lamp has the following functions:
• It will light for about 2 seconds when the ignition is switched on while a
test of the function is carried out.
• It flashes when the ESP is activated when driving.
• It will light up continuously if there is a malfunction in the ESP.
• It will light up continuously if the ESP is switched off.
• It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp lights up and stays on after the engine is started, this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then on again. If the warning lamp goes out, this means the system is fully functional.
Operating the foot brake
The footbrake must be depressed when this warning lamp lights up. This is necessary when the automatic gearbox* selector lever is moved out of the positions P or N
Power steering system*
For vehicles with power steering, the level of steering assistance depends on the vehicle's speed and on the steering angle.
The warning lamp should light up for a few seconds when the ignition is switched on. It should go out when the engine has started running.
If the battery is disconnected, the indicator remains lit, even with the engine running. The warning light only goes off after a distance of approx. 50 m.
There is a fault in the electromechanical steering system if the lamp does not go out or light up, whilst the vehicle is in motion. The indicator may appear in two different colours to indicate faults. If it lights yellow, this indicates a minor fault. If it lights red, seek workshop assistance immediately, if no assistance is available stop driving. Stop the vehicle and seek technical assistance. The power steering does not work if the battery is flat or if the engine is off (for example, for towing). You should take into account that you will need considerably more power than normal to steer the vehicle if the steering assistance is reduced or has failed completely
Brake pad wear indicator*
As the brake pad wear indicator only monitors the front brake pads, it is advisable to have the rear brake pads inspected at the same time.
The information text displayed in the instrument panel display is16): CHECK BRAKE PADS.
WARNING
Have the brake pads inspected immediately by a qualified dealership if the warning display lights up.
Indicator for open doors or tailgate
This indicator lights if one of the doors or the tailgate is open.
The warning light should go off when all the doors are closed correctly.
The system also works when the ignition is switched off. It should go off about 15 seconds after the vehicle is locked.
Electronic immobiliser* “Safe”
This warning lamp flashes if an unauthorised key is used.
automatically when the key is inserted into the ignition. The immobiliser will be activated again automatically as soon as you pull the key out of the ignition lock.
The message displayed in the instrument panel display is17): SAFE. The vehicle cannot be used in that case.
The engine can, however, be started if the appropriate coded SEAT genuine key is used.
Note
The vehicle cannot be operated properly if you do not have a genuine SEAT
key.
Fuel level / reserve
This symbol lights up to indicate that the fuel tank is down to the reserve level. This lights when only 7 litres of fuel remain in the tank. Also, an audible warning is given. This serves as a r ...See also:
Number of seats
Your vehicle has five passenger places, two individual front seats and three
places on the rear seat. Each seat is equipped with a three-point seat belt.
WARNING
• Never transport more people tha ...
