Seat Leon >> Check battery with the battery tester - VAS 6161-

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Check battery with the battery tester - VAS 6161-

Before checking the battery, select the correct test mode on the battery tester - VAS 6161- .

  • Maintenance test: applicable only for new vehicles which were stored by the importer or the dealer before being delivered to the customer.
  • Warranty test: applicable only for vehicles and components covered under warranty.
  • Service test: applicable only for vehicles and components no longer covered under warranty and for vehicles with third-party batteries.

NOTICE For technical reasons, it is possible that some links do not make reference to the correct chapter. In this case select the procedure manually in the information.

Battery status: Read off and send the diagnosis protocol online

NOTICE Only applicable for vehicles with Start/Stop system and energy recovery system.

Work sequence

The battery status is read while the transportation mode is being switched off.

Charging the battery

NOTICE For technical reasons, it is possible that some links do not make reference to the correct chapter. In this case select the procedure manually in the information.

Removing engine cover

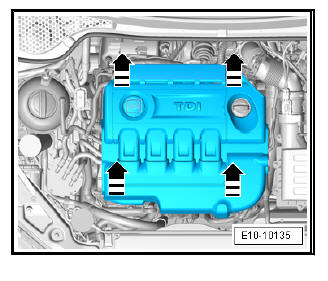

TDI common rail engines

  • Disconnect the engine cover at points -arrows- and remove.

Maintenance

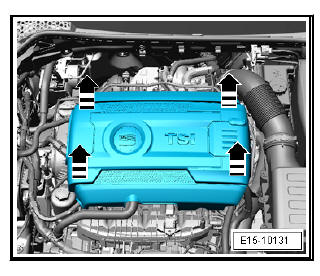

1.8 l and 2.0 I TSI engines

  • Disconnect the engine cover at points -arrows- and remove.

Maintenance
