Seat Leon >> Location overview - Sound system

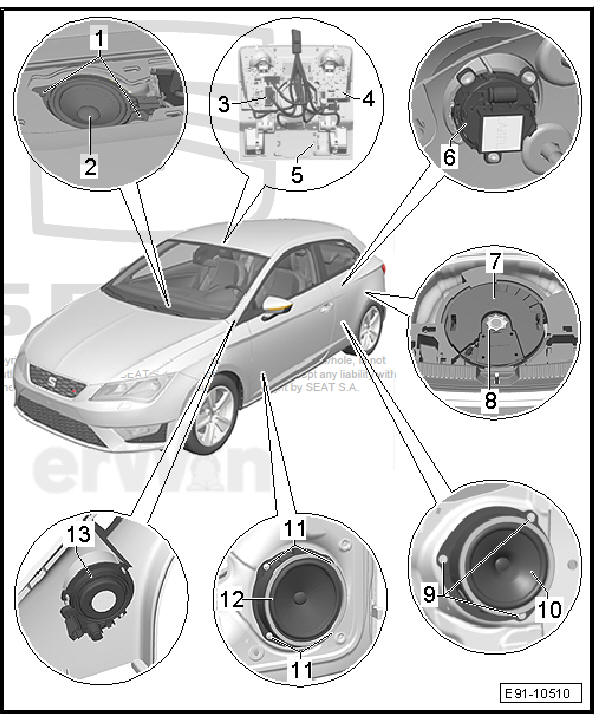

Location overview - Sound system, 2-door vehicle

Communication

  1. - Screw
    • 3 Nm
  2. - Centre loudspeaker - R208-
    • Removal and installation
  3. - Multi-pin connector, 6-pin
  4. - Front interior light - W1-
    • Assembly overview
  5. - Telephone microphone - R38-
    • Assembly overview
    • Removal and installation
  6. - Rear left treble loudspeaker - R14- / rear right treble loudspeaker - R16-
    • Removal and installation
  7. - Subwoofer - R211-
    • Removal and installation
  8. - Screw
    • 3 Nm
  9. - Screw
    • 3 Nm
  10. - Rear left bass loudspeaker - R15- / rear right bass loudspeaker - R17-
    • Removal and installation
  11. - Screw
    • 2 Nm
  12. - Front left bass loudspeaker - R21- / front right bass loudspeaker - R23-
    • Removal and installation
  13. - Front left treble loudspeaker - R20- / front right treble loudspeaker - R22-
    • Removal and installation

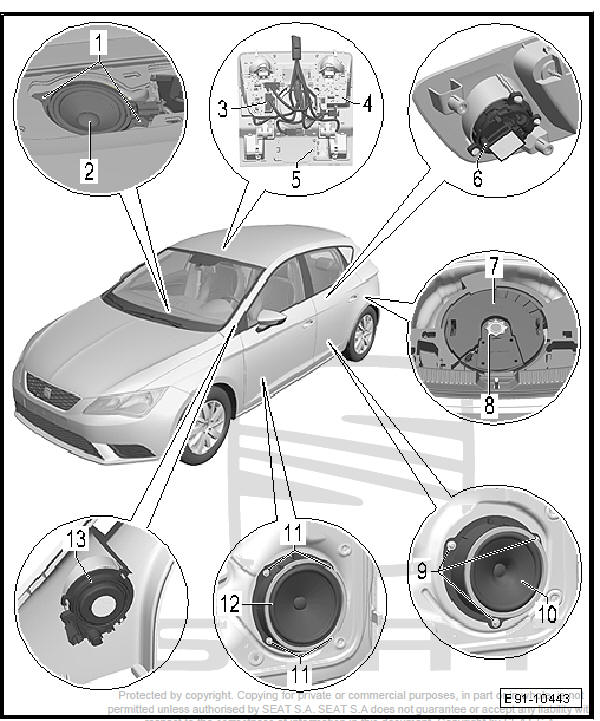

Location overview - Sound system, 4-door vehicle

Communication

  1. - Screw
    • 3 Nm
  2. - Centre loudspeaker - R208-
    • Removal and installation
  3. - Multi-pin connector, 6-pin
  4. - Front interior light - W1-
    • Assembly overview
  5. - Telephone microphone - R38-
    • Assembly overview
    • Removal and installation
  6. - Rear left treble loudspeaker - R14- / rear right treble loudspeaker - R16-
    • Removal and installation
  7. - Subwoofer - R211-
    • Removal and installation
  8. - Screw
    • 3 Nm
  9. - Screw
    • 3 Nm
  10. - Rear left bass loudspeaker - R15- / rear right bass loudspeaker - R17-
    • Removal and installation
  11. - Screw
    • 2 Nm
  12. - Front left bass loudspeaker - R21- / front right bass loudspeaker - R23-
    • Removal and installation
  13. - Front left treble loudspeaker - R20- / front right treble loudspeaker - R22-
    • Removal and installation
