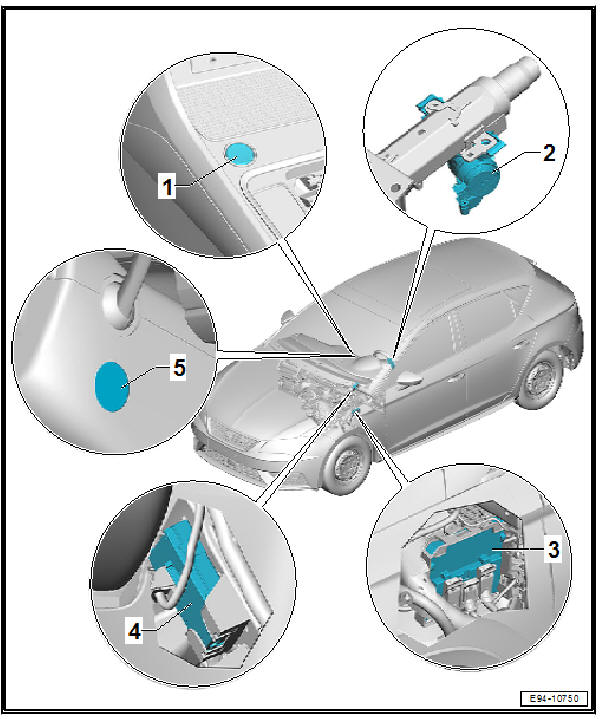

Seat Leon >> Overview of fitting locations - access and start authorization system

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Entry and start authorisation / Overview of fitting locations - access and start authorization system

Lights, bulbs, switches - exterior

  1. - Starter button - E378-
    • Removal and installation
  2. - Steering column lock control element - N360-
    • Removing and installing
  3. - Onboard supply control unit - J519-
    • With central locking and anti-theft alarm system aerial - R47-
    • Assembly overview
  4. - Entry and start authorisation control unit - J518-
    • Removal and installation
  5. - Immobiliser reading cylinder - D2-
    • Removal and installation.

Overview of fitting locations - keyless access authorization system

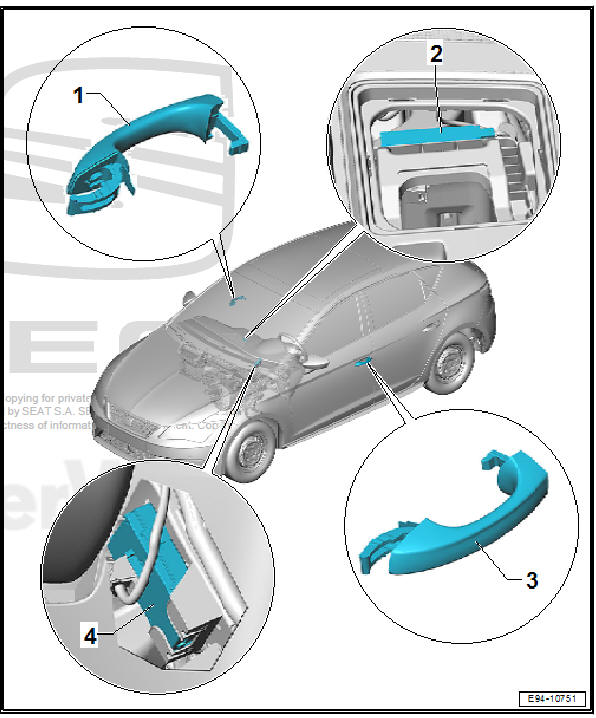

Overview of fitting locations - keyless access authorization system, front

Lights, bulbs, switches - exterior

  1. - Front passenger's exterior door handle
    • Remove and install with sensor for front right exterior door handle contact - G606-
    • With front passenger side aerial for entry and start authorisation - R135- . Removing and installing .
  2. - Interior aerial 1 for entry and start authorisation - R138-
    • Removal and installation
  3. - Driver's exterior door handle
    • Remove and install with sensor for front left exterior door handle contact - G605-
    • With driver side aerial for entry and start authorisation - R134- . Removing and installing
  4. - Entry and start authorisation control unit - J518-
    • Removal and installation

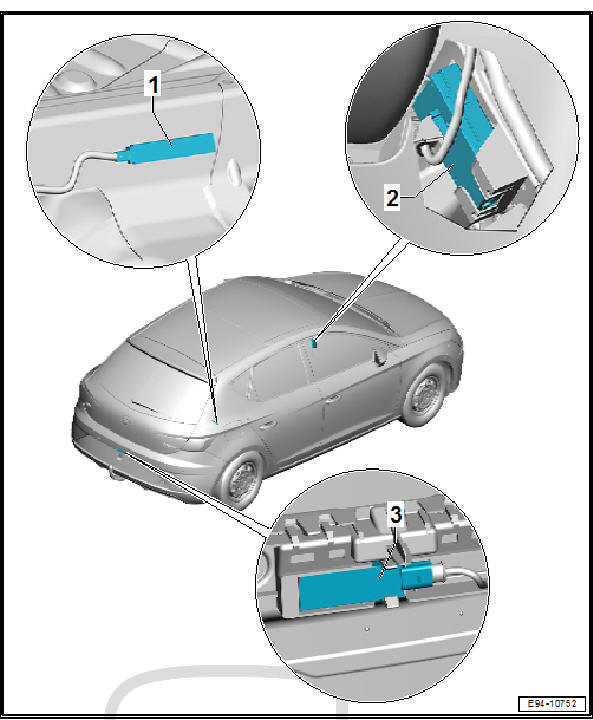

Overview of fitting locations - keyless entry system, rear

Lights, bulbs, switches - exterior

  1. - Luggage compartment aerial for entry and start system - R137-
    • Removal and installation
  2. - Entry and start authorisation control unit - J518-
    • Removal and installation
  3. - Rear bumper aerial for entry and start authorisation - R136-
    • Removal and installation
