Seat Leon >> Assembly overview - windscreen washer system

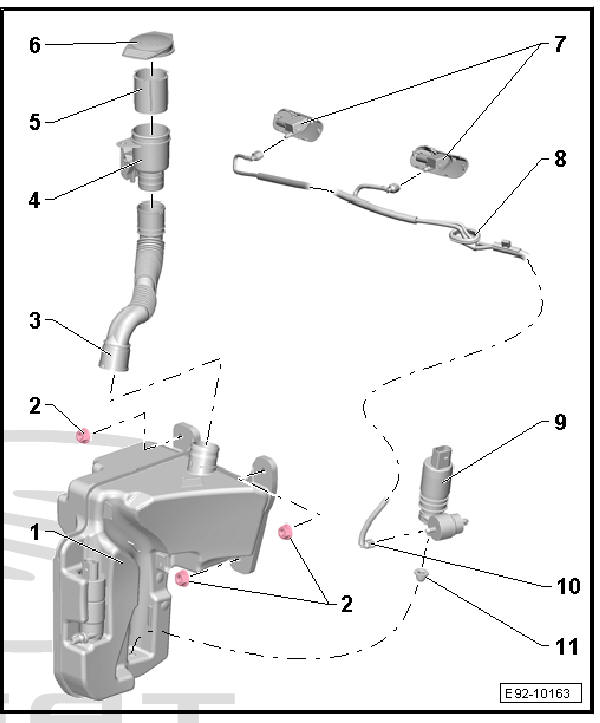

Assembly overview - windscreen wiper system, vehicles without additional left cooler

Windscreen wash/wipe system

  1. - Windscreen and headlamp washer reservoir
    • Removal and installation
  2. - Nut
    • 3 Pieces
    • Tightening torque, 8 Nm +- 1.2
  3. - Filler pipe
  4. - Charging hoses
    • Removal and installation
  5. - Strainer
  6. - Filler cap
    • For filler neck
  7. - Washer jet
    • Version with right spray jet heater element - Z21-
    • Removal and installation
    • Adjusting
  8. - Nipple
    • For washer fluid hose in bonnet
  9. - Windscreen and rear window washer pump - V59-
    • Removal and installation
  10.  - Water pipe
    • For windscreen washer system
  11. - Sleeve
    • Renew if damaged.

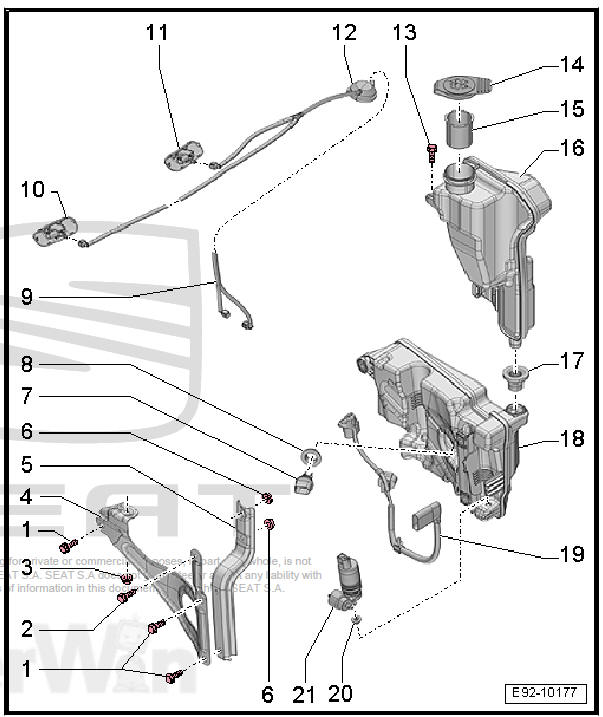

Assembly overview - windscreen wiper system, vehicles with additional left cooler

Windscreen wash/wipe system

  1. - Screw
    • 3 units.
    • 8 Nm +- 1.2
  2. - Screw
    • 8 Nm +- 1.2
  3. - Nut
    • 8 Nm +- 1.2
  4. - Mounting
    • For washer fluid reservoir
    • Removal and installation
  5. - Mounting
    • For filler neck
    • Removal and installation
  6. - Nut
    • 2 units.
    • 8 Nm +- 1.2
  7. - Washer fluid level sender - G33-
    • Removal and installation
  8. - Sleeve
    • Renew if damaged.
  9. - Water pipe
    • For windscreen washer system
  10. - Right spray jet
    • Version with right spray jet heater element - Z21-
    • Removal and installation
    • Adjusting
  11. - Left spray jet
    • Version with left washer jet heater element - Z20-
    • Removal and installation
    • Adjusting
  12. - Nipple
    • For washer fluid hose in bonnet
  13. - Screw
    • 8 Nm +- 1.2
  14. - Filler cap
    • For filler neck
  15. - Strainer
  16. - Charging hoses
    • For washer fluid reservoir
    • Removal and installation
  17. - Sleeve
    • Renew if damaged.
  18. - Windscreen and headlamp washer reservoir
    • Removal and installation
  19. - Electrical wiring harness
  20. - Sleeve
    • Renew if damaged.
  21. - Windscreen and rear window washer pump - V59-
    • Removing and installing
    Removing and installing headlamp washer reservoir
    Installing and removing the filler pipes of the washer fluid reservoir, vehicles without additional left cooler Removing Detach fastener -1-. Pull filler neck -3- out of bracket on lock carri ...
