Seat Leon >> Exploded view - wheel housing liner

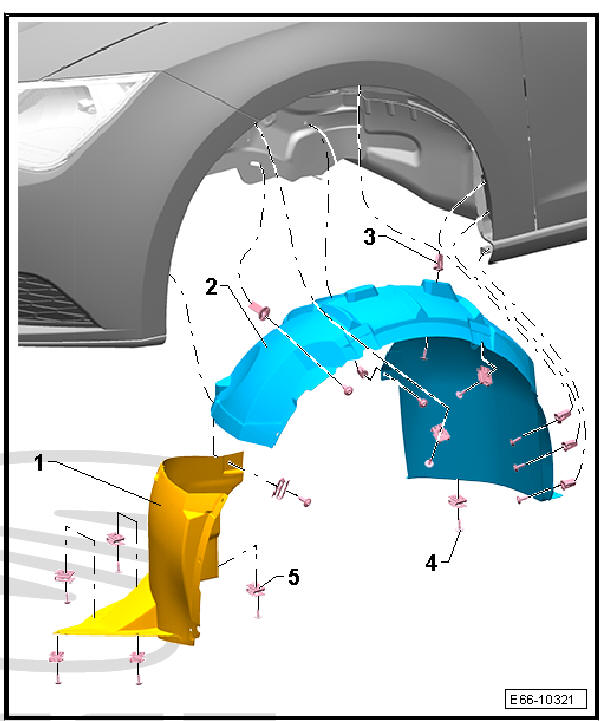

Exploded view - wheel housing liner (front)

Exterior equipment

  1. - Front wheel housing spoiler
    • PP/EPDM Material
  2. - Front wheel housing liner
    • PP/EPDM Material
  3. - Fixing block
    • 7 off
  4. - Bolt.
    • 16 off
    • 2.2+- 0.3 Nm
  5. - Quick locking nut
    • 11x

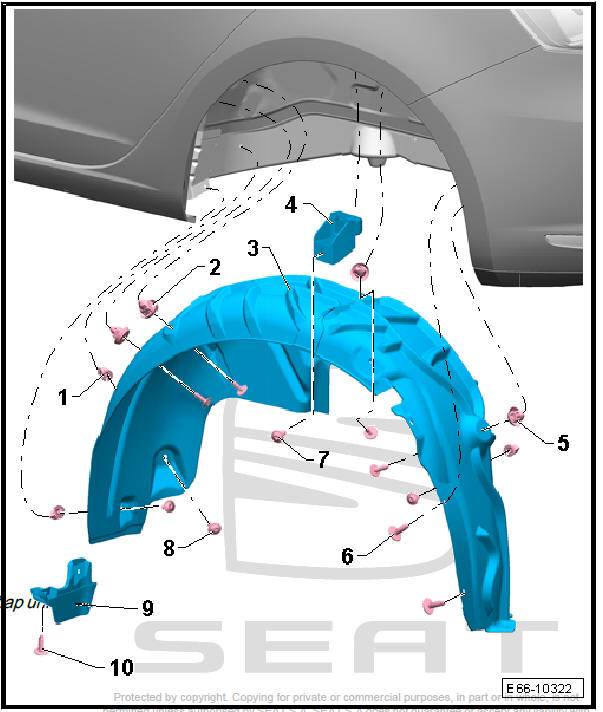

Exploded view - wheel housing liner (rear)

Exterior equipment

  1. - Spreader block
    • 2 items for the side of the tank flap unit
    • 3 items for the opposite side of the tank flap unit
  2. - Tight spreader block
    • 6 off

DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Rear wheel housing
  2. - Spacer

Note For the side of the tank flap unit only.

  1. - Tight spreader block
    • 1x

DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Bolt.
    • Fixing to the tight expanding block
    • 7 off
    • 2.2+- 0.3 Nm
  2. - Bolt.
    • Fastening on the spacer bracket
    • 1x
    • 2.2+- 0.3 Nm
  3. - Bolt.
    • Fixing to the expanding block
    • 1 items for the side of the tank flap unit
    • 2 items for the opposite side of the tank flap unit
    • 2+- 0.2 Nm
  4. - Rear wheel housing liner spoiler
  5. - Bolt.
    • Fixing to the expanding block
    • 1x
    • 2.2+- 0.3 Nm
