Seat Leon >> Removing and installing noise insulation

Removing and installing noise insulation (short version)

Special tools and workshop equipment required

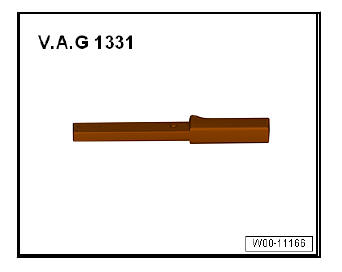

  • Torque wrench - V.A.G 1331-

Exterior equipment

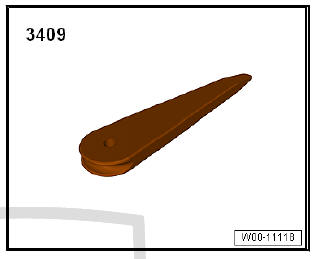

  • Release lever - 3409-

Exterior equipment

Removing

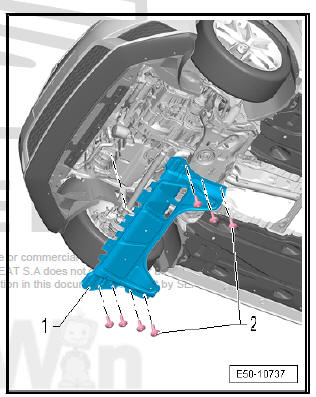

  • Remove screws -2-.
  • Using the lever - 3409- , press on the fixing tags and remove the centre noise insulation -1-.

fitting

Fit in reverse order from removal, remembering the following:

  • Use the tightening torque of the screws.

Exterior equipment

Removing and installing noise insulation (long version)

Special tools and workshop equipment required

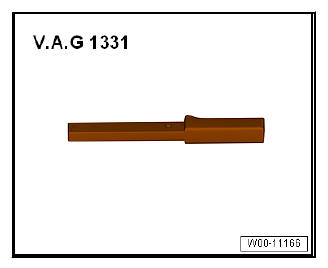

  • Torque wrench - V.A.G 1331-

Exterior equipment

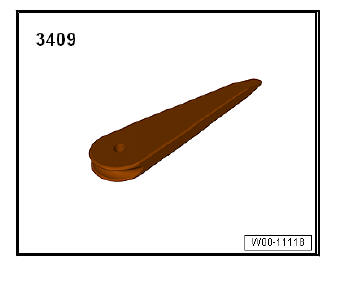

  • Release lever - 3409-

Exterior equipment

Removing

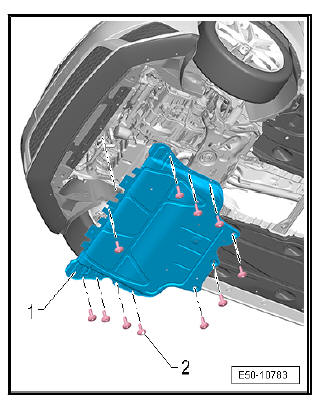

  • Remove screws -2-.
  • Using the lever - 3409- , press on the fixing tags and remove the centre noise insulation -1-.

fitting

Fit in reverse order from removal, remembering the following:

  • Use the tightening torque of the screws.

Exterior equipment

Removing and installing skid plate

Special tools and workshop equipment required

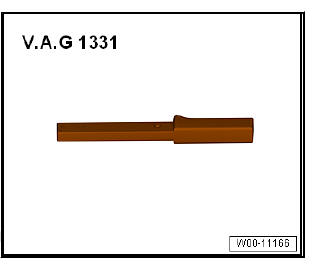

  • Torque wrench - V.A.G 1331-

Exterior equipment

Removing

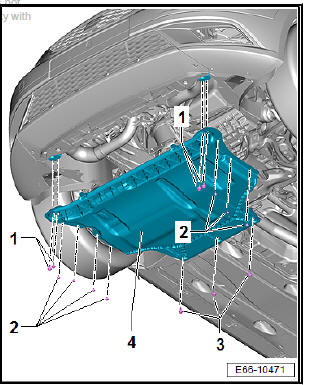

  • Unscrew bolts -1-, -2- and -3-.
  • Remove the centre -4- noise insulation.

fitting

Fit in reverse order from removal, remembering the following:

  • Use the tightening torque of the screws.

Exterior equipment

    Exploded view - noise insulation
    Assembly overview - short noise insulation Note During removal and installation, take note of small amounts of differences depending on the engine. - Short noise insulation - Bolt. 8 of ...
