Seat Leon >> Removing and installing front trim

Removing and installing front trim

Special tools and workshop equipment required

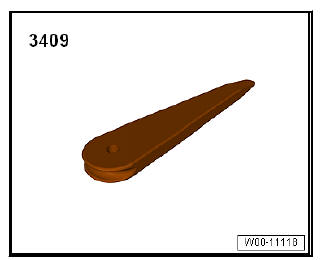

  • Release lever - 3409-

Exterior equipment

Removing

  • Remove bumper cover (front) .

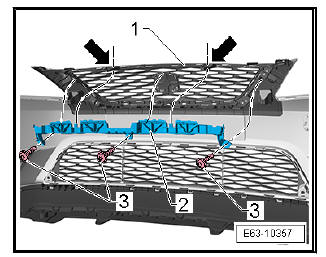

  • Remove screws -3- and with the help of the lever - 3409- cut away the top retaining clips -Arrows-. Remove the wind deflector -2- from the top grille -1-.

Exterior equipment

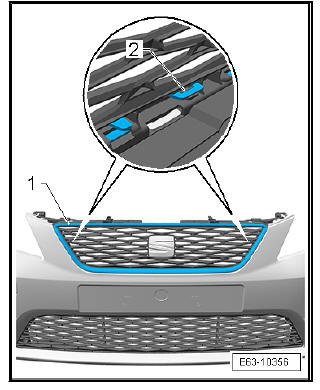

  • With the help of the lever - 3409- , cut away the retaining clips -2- and remove the decorative frame from the top grille -1-.

fitting

  • Install in reverse order.

Exterior equipment

Front trim - CUPRA 2017 version - removing and installing

Special tools and workshop equipment required

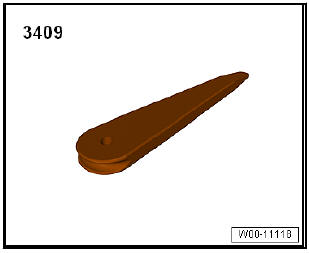

  • Lever - 3409-

Exterior equipment

Removing

  • Remove bumper cover (front) .

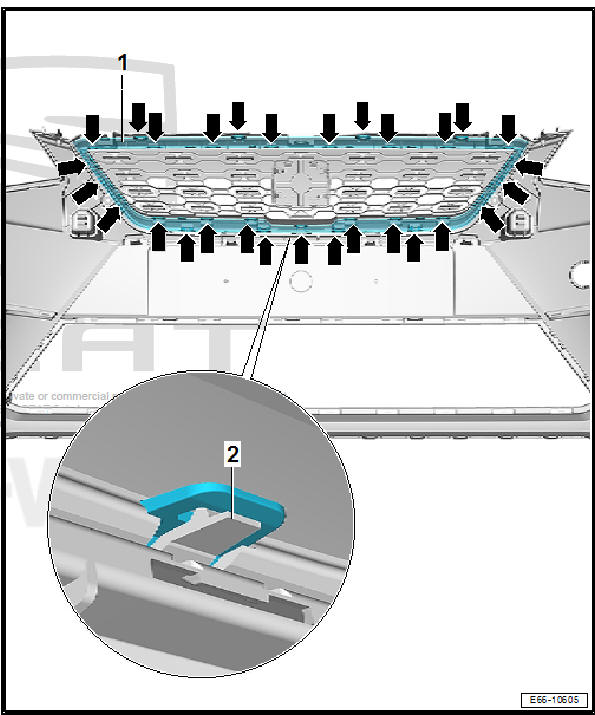

  • Loosen the retaining clips -2- in the positions labelled by the -arrows- with the lever - 3409- and remove the front trim -1-.

Exterior equipment

Installation

Install in the reverse order to removal.
