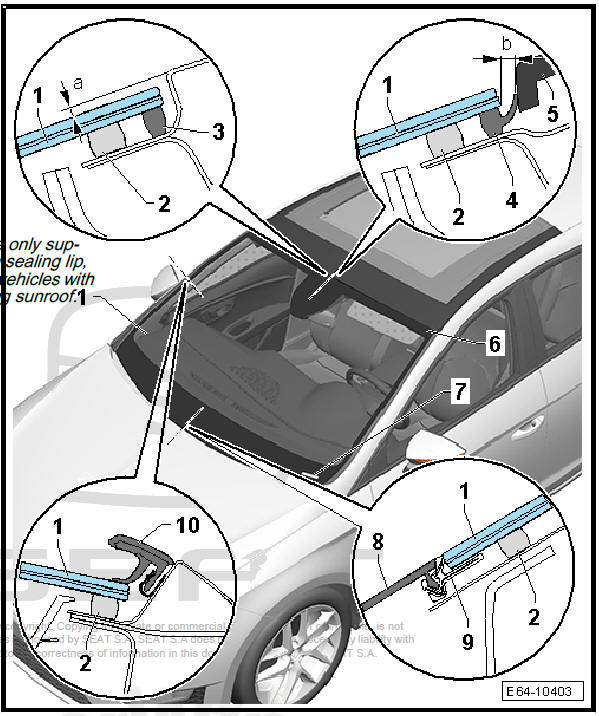

Seat Leon >> Exploded view - windscreen

Glazing

  1. - Windscreen
    • Supplied with retaining plate for interior rear-view mirror
    • Before installation, check to ensure that retaining plate is correct for type of rear view mirror.

Note The spare parts service only supplies a windscreen with sealing lip, which is compatible for vehicles with and without sliding/tilting sunroof.

  1. - PUR adhesive sealant
    • Bead cross section:
      • Width = 7 mm
      • Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
Caution

Position a new window of the adhesive material (PUR) at the intended marking.

  1. - Spacer cap
    • Only for vehicles without sliding / tilt sunroof
    • Mounted on the rear side of the window

Note The spare parts service only supplies a windscreen with sealing lip, which is compatible for vehicles with and without sliding/tilting sunroof.

  1. - Spacer block with sealing lip
    • Only for vehicles with sliding / tilt sunroof!

Note The spare parts service only supplies a windscreen with sealing lip, which is compatible for vehicles with and without sliding/tilting sunroof.

  1. - Trim panel for sliding/tilting sunroof
  2. - Ceramic layer
Caution

Do not damage when dealing with the window

  1. - Chassis number
  2. - Grille below windscreen
  3. - Guide rail
    • With sealing lip for mounting the grille under the windscreen
  4. - A-pillar water drain strip
    • 2 off

Cota b - 2.5 +- 1 mm

  • Distance between edge of windscreen and finisher on sliding/tilting sunroof.
  • Only for vehicles with sliding / tilt sunroof!

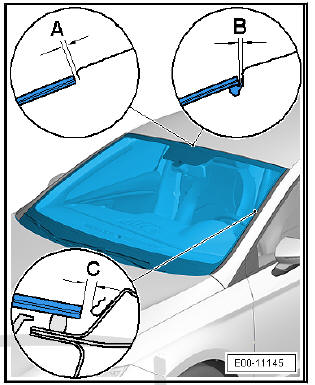

Dimension a

  1. - 2.5 +- 0.5 mm (only valid for vehicles without sliding/tilting sunroof)
  2. - 2.3 +- 0.5 mm (only valid for vehicles with sliding/tilting sunroof)
  3. - 3.0 +- 0.5 mm
