Seat Leon >> Exploded view of bumper cover

Front bumper lining - Assembly overview

Bumpers

  1. - Front park assist steering senders
    • 4 off
  2. - Seal for the sensor of the front steering parking aid
    • 4 off
  3. - Sensor holder for the front steering parking aid
    • 4 off
  4. - Company emblem at front
  5. - Impact bar
  6. - Lock carrier cover
  7. - Expansion rivet
    • 4 off
  8. - Wind deflector
  9. - Bolt.
    • 3 off
    • 2 Nm
  10. - Bolt.
    • 2 + 2 each
    • 2 Nm
  11. - Bolt.
    • 2 + 2 each
    • 2 Nm
  12. - Spreader block
    • 3 + 3 each
  13. - Guide profile
  14. - Bolt.
    • 3 + 3 each
    • 2 Nm
  15. - Front trim
  16. - Bracket on fog light
    • Depending on version
  17. - Bolt.
    • 1 + 1 each
    • For securing the grille
  18. - Front wheel housing liner
    • PP/EPDM Material
  19. - Front wheel housing spoiler
    • PP/EPDM Material
  20. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  21. - Side grille the trim of the bumper
    • Depending on model
  22. - Wing of the spoiler, bottom
  23. - Bolt.
    • 4 off
    • 2 Nm
  24. - Bottom spoiler
  25. - Bolt.
    • 1 + 1 each
    • 2 Nm
  26. - Centre grille
    • Secured to front bumper lining with retaining clips
  27. - Trailer hitch cover
  28. - Front bumper cover
  29. - Upper grille centred in the trim of the bumper

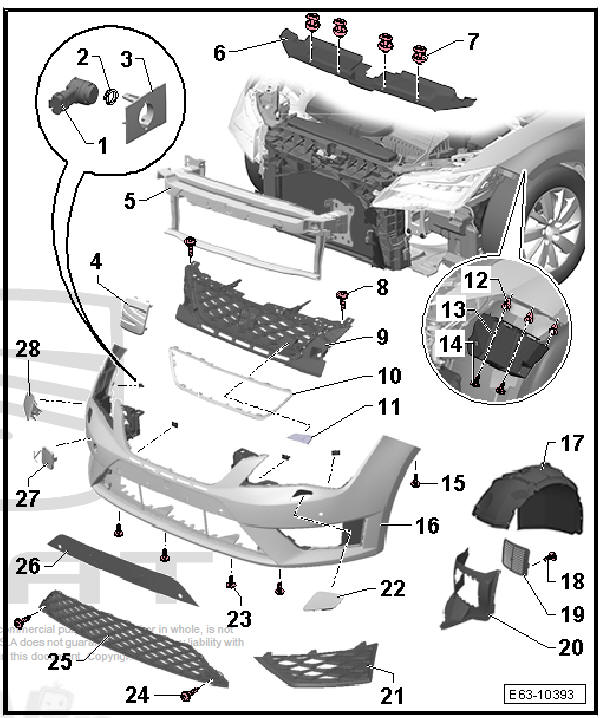

Front bumper cover, version CUPRA - assembly overview

Bumpers

  1. - Front park assist steering senders
    • 4 off
  2. - Seal for the sensor of the front steering parking aid
    • 4 off
  3. - Sensor holder for the front steering parking aid
    • 4 off
  4. - Company emblem at front
  5. - Impact bar
  6. - Lock carrier cover
  7. - Expansion rivet
    • 4 off
  8. - Bolt.
    • 2 + 2 each
    • 2 Nm
  9. - Upper grille centred in the trim of the bumper
  10. - Front trim
  11. - Front company badge "CUPRA"
  12. - Spreader block
    • 3 + 3 each
  13. - Guide profile
  14. - Bolt.
    • 3 + 3 each
    • 2 Nm
  15. - Bolt.
    • 1 + 1 each
    • For securing the grille
  16. - Front bumper cover
  17. - Front wheel housing liner
    • PP/EPDM Material
  18. - Bolt.
  19. - Air intake grille
    • Depending on version
    • Only on left side
    • removal and install; remove bolt
  20. - Front wheel housing spoiler
    • PP/EPDM Material
  21. - Side grille the trim of the bumper
  22. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  23. - Bolt.
    • 4 off
    • 2 Nm
  24. - Bolt.
    • 1 + 1 each
    • 2 Nm
  25. - Centre grille
    • Secured to front bumper lining with retaining clips
  26. - Cover
  27. - Trailer hitch cover
  28. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system

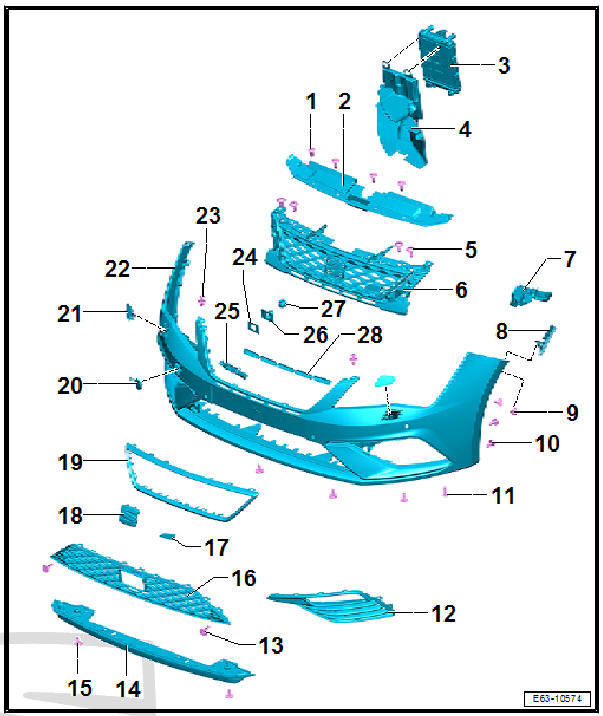

Front bumper cover, version CUPRA 2017 - assembly overview

Bumpers

  1. - Expansion rivet
    • 4 off
  2. - Lock carrier cover
  3. - Auxiliary radiator
    • Depending on version
  4. - Auxiliary radiator air duct
    • Depending on version
    • Right.
    • Depending on the version, an air duct can be fitted on the left side on vehicles with automatic gearboxes
  5. - Bolt
    • 4 off
    • 2 Nm
  6. - Upper grille centred in the trim of the bumper
  7. - Guide profile
  8. - Front wheel housing liner trim
    • 1 + 1 each
  9. - Bolt.
    • 1 + 1 each
    • 2 Nm
  10. - Bolt.
    • 3 + 3 each
    • 2 Nm
  11. - Bolt.
    • 2 + 2 each
    • 2.2 Nm
  12. - Side grille the trim of the bumper
  13. - Bolt.
    • 2 off
    • 2 Nm
  14. - Wing of the spoiler, bottom
  15. - Bolt.
    • 4 off
    • 2.2 Nm
  16. - Centre grille
    • Secured to front bumper lining with retaining clips
  17. - Front company badge "FR"
  18. - Company emblem at front
  19. - Front trim
  20. - Trailer hitch cover
  21. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  22. - Front bumper cover
  23. - Expansion rivet
    • 2 off
  24. - Seal for the sensor of the front steering parking aid
    • 4 off
  25. - Spray nozzle for headlight washer system
  26. - Sensor holder for the front steering parking aid
    • 4 off
  27. - Front park assist steering senders
    • 4 off
  28. - Central grille in the bumper cover

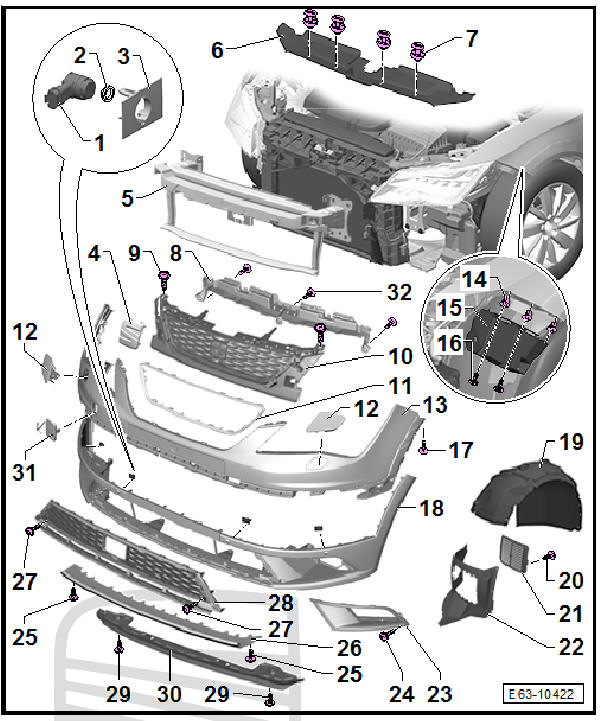

Front bumper cover, version X-PERIENCE - assembly overview

Bumpers

  1. - Front park assist steering senders
    • 4 off
  2. - Seal for the sensor of the front steering parking aid
    • 4 off
  3. - Sensor holder for the front steering parking aid
    • 4 off
  4. - Company emblem at front
  5. - Impact bar
  6. - Lock carrier cover
  7. - Expansion rivet
    • 4 off
  8. - Wind deflector
  9. - Bolt.
    • 2 Nm
  10. - Upper grille centred in the trim of the bumper
  11. - Front trim
  12. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  13. - Front bumper cover, top section
  14. - Spreader block
    • 3 + 3 each
  15. - Guide profile
  16. - Bolt.
    • 3 + 3 each
    • 2 Nm
  17. - Bolt.
    • 1 + 1 each
  18. - Front bumper cover, bottom section
  19. - Front wheel housing liner
    • PP/EPDM Material
  20. - Bolt.
    • For securing air intake grille
  21. - Air intake grille
    • Depending on version
    • Only on left side
    • removal and install; remove bolt
  22. - Front wheel housing spoiler
    • PP/EPDM Material
  23. - Side grille the trim of the bumper
  24. - Bolt.
  25. - Bolt.
  26. - Bottom spoiler
  27. - Bolt.
    • 1 + 1 each
    • 2 Nm
  28. - Centre grille
    • Secured to front bumper lining with retaining clips
  29. - Bolt.
  30. - Wing of the spoiler, bottom
  31. - Trailer hitch cover
  32. - Bolt.
    • 3 off
    • 2 Nm

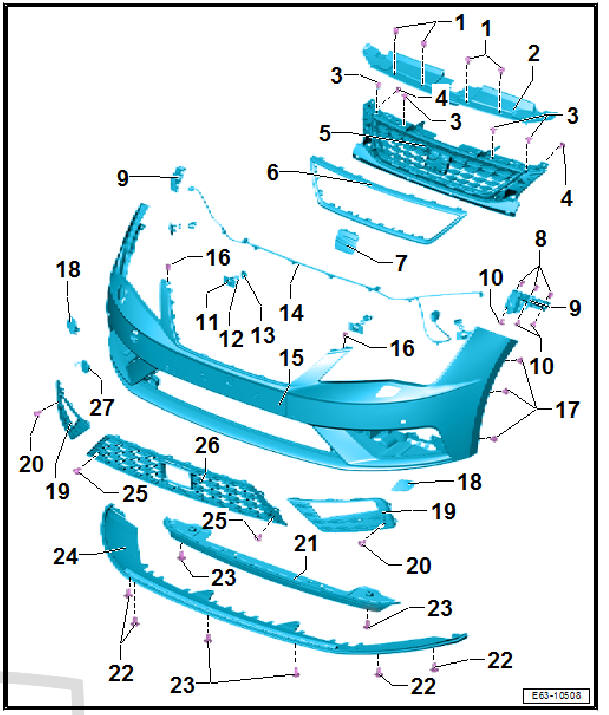

Front bumper cover, version Ecomotive Leon 2017 - assembly overview

Front bumper cover, version Ecomotive Leon 2017 - assembly overview

  1. - Expansion rivet
    • 4 off
  2. - Lock carrier cover
  3. - Bolt.
    • 4 off
    • 2 Nm
  4. - Bolt.
    • 2 off
    • 2 Nm
  5. - Upper grille centred in the trim of the bumper
  6. - Front trim
  7. - Company emblem at front
  8. - Spreader block
    • 3 + 3 each
  9. - Guide profile
  10. - Bolt.
    • 3 + 3 each
    • 2 Nm
  11. - Sensor holder for the front steering parking aid
    • 4 off
  12. - Seal for the sensor of the front steering parking aid
    • 4 off
  13. - Front park assist steering senders
    • 4 off
  14. - Wiring harness
  15. - Front bumper cover
  16. - Expansion rivet
    • 2 off
  17. - Bolt.
    • 3 + 3 each
  18. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  19. - Side grille the trim of the bumper
  20. - Bolt.
    • 1 + 1 each
  21. - Wing of the spoiler, bottom
  22. - Bolt.
    • 4 off
    • 2.2 Nm
  23. - Bolt.
    • 4 off
    • 2 Nm
  24. - Bottom spoiler
  25. - Bolt.
    • 2 off
    • 2 Nm
  26. - Centre grille
    • Secured to front bumper lining with retaining clips
  27. - Trailer hitch cover

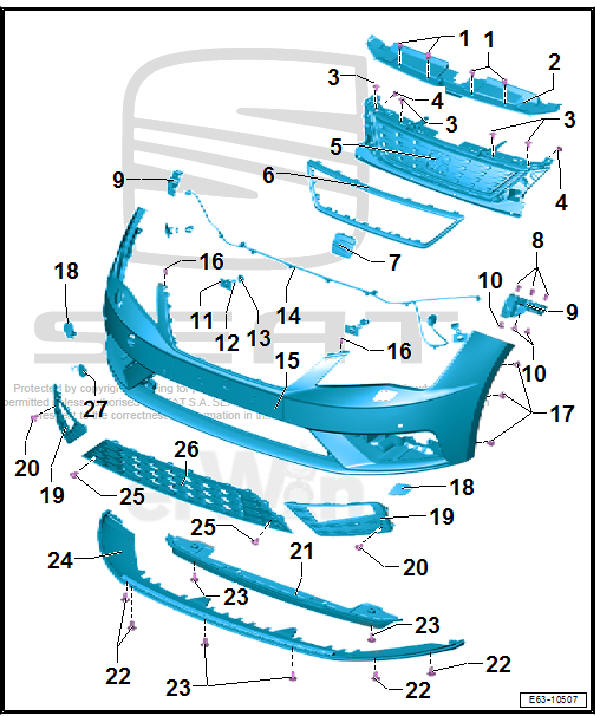

Front bumper cover, version mit Radar Leon 2017 - assembly overview

Bumpers

  1. - Expansion rivet
    • 4 off
  2. - Lock carrier cover
  3. - Bolt.
    • 4 off
    • 2 Nm
  4. - Bolt.
    • 2 off
    • 2 Nm
  5. - Upper grille centred in the trim of the bumper
  6. - Front trim
  7. - Company emblem at front
  8. - Spreader block
    • 3 + 3 each
  9. - Guide profile
  10. - Bolt.
    • 3 + 3 each
    • 2 Nm
  11. - Sensor holder for the front steering parking aid
    • 4 off
  12. - Seal for the sensor of the front steering parking aid
    • 4 off
  13. - Front park assist steering senders
    • 4 off
  14. - Wiring harness
  15. - Front bumper cover
  16. - Expansion rivet
    • 2 off
  17. - Bolt.
    • 3 + 3 each
  18. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  19. - Side grille the trim of the bumper
  20. - Bolt.
    • 1 + 1 each
    • 2 Nm
  21. - Wing of the spoiler, bottom
  22. - Bolt.
    • 4 off
    • 2.2 Nm
  23. - Bolt.
    • 4 off
    • 2 Nm
  24. - Bottom spoiler
  25. - Bolt.
    • 2 off
    • 2 Nm
  26. - Centre grille
    • Secured to front bumper lining with retaining clips
  27. - Trailer hitch cover

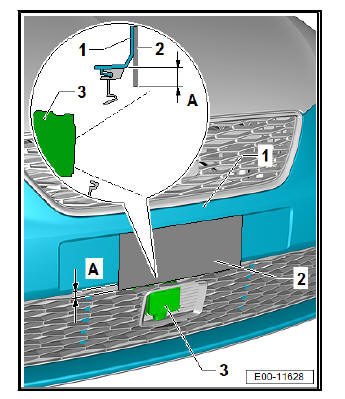

Assembly of the number plate or number plate carrier, vehicles with wheels

Note When assembling the number plate or number plate carrier on the front bumper, the area of the radar signals is kept free.

The number plate or number plate carrier -2- must not exceed the maximum dimension -A- measured from the end of the bumper -1- in order to prevent interferences with the area of the radar signals -3-.

  • Dimension A: 25 mm

Bumpers

Note The maximum dimension -A- applies to all the bumper designs.

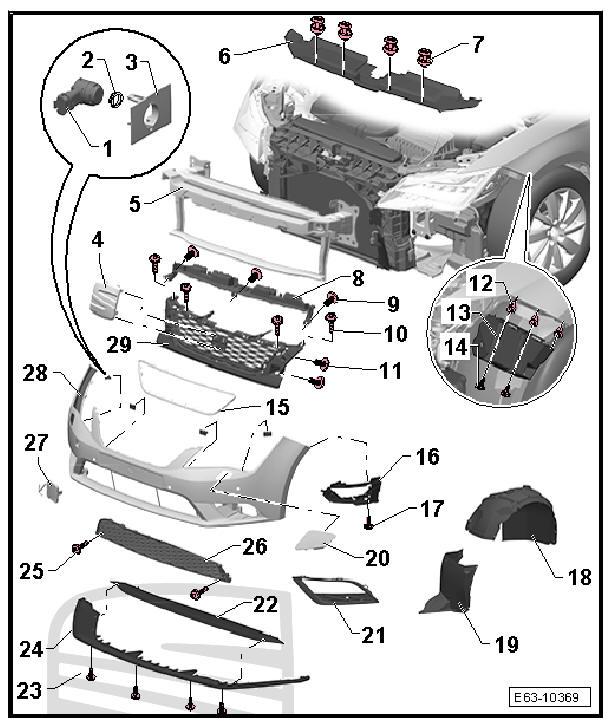

Front bumper cover, version FR Leon 2017 - assembly overview

Bumpers

  1. - Expansion rivet
    • 4 off
  2. - Lock carrier cover
  3. - Bolt.
    • 4 off
    • 2 Nm
  4. - Bolt.
    • 2 off
    • 2 Nm
  5. - Upper grille centred in the trim of the bumper
  6. - Front trim
  7. - Front company badge "FR"
  8. - Company emblem at front
  9. - Spreader block
    • 3 + 3 each
  10. - Guide profile
  11. - Bolt.
    • 3 + 3 each
    • 2 Nm
  12. - Bolt.
    • 3 + 3 each
  13. - Spray jet cover of the headlight washer system
    • Installing and removing headlight cleaning system
  14. - Side grille the trim of the bumper
  15. - Bolt.
    • 1 + 1 each
    • 2 Nm
  16. - Bolt.
    • 4 off
    • 2.2 Nm
  17. - Wing of the spoiler, bottom
  18. - Bolt.
    • 2 off
    • 2 Nm
  19. - Centre grille
    • Secured to front bumper lining with retaining clips
  20. - Trailer hitch cover
  21. - Front bumper cover
  22. - Sensor holder for the front steering parking aid
    • 4 off
  23. - Seal for the sensor of the front steering parking aid
    • 4 off
  24. - Front park assist steering senders
    • 4 off
  25. - Expansion rivet
    • 2 off
  26. - Wiring harness
    Impact bar - exploded view
    Impact bar - exploded view - Impact bar - Bolt. 2 + 2 each 8 Nm - Bolt. 4 + 4 each 55 Nm - Shock absorber - Bolt. 2 off 8 Nm - Protective support fo ...
