Seat Leon >> Removing and installing rear part

Removing

  • Remove front glass panel.
  • Remove rear glass panel.
  • Remove sun blind.
  • Remove assembly frame from vehicle.

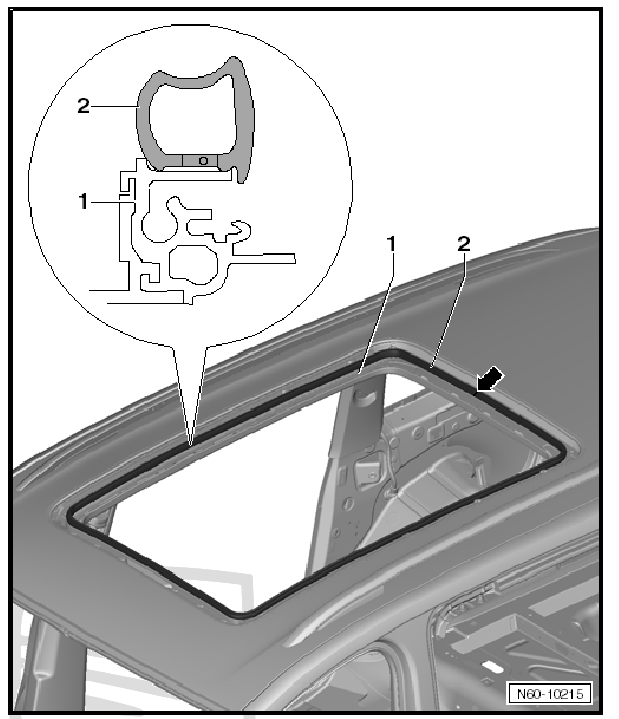

  • Pull interior seal -2- off assembly frame -1-.
  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .

Sunroof

  • Release wiring harness from rear section.

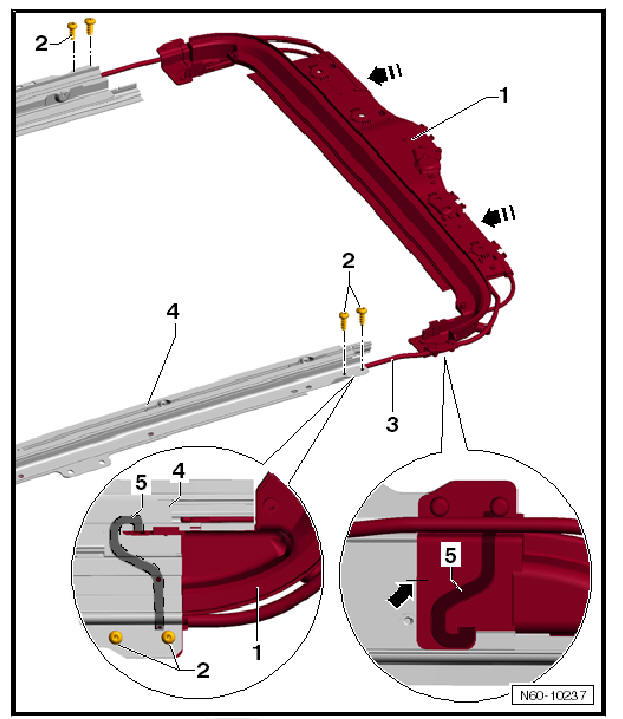

  • Mark position -arrow- of rear part -1- in relation to guide rails -4- for purpose of later installation.
  • Loosen bolts -2-.
  • Separate bonded connection -5- between guide rail -4- and rear part -1-, using a knife.
  • Pull entire rear part -1- together with discharge tubes -3- out of guide rails -4-.

fitting

Sunroof

  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .
  • Clean bonding surfaces -5- on rear part and guide rails with cleaning solution -D 009 401 04- .

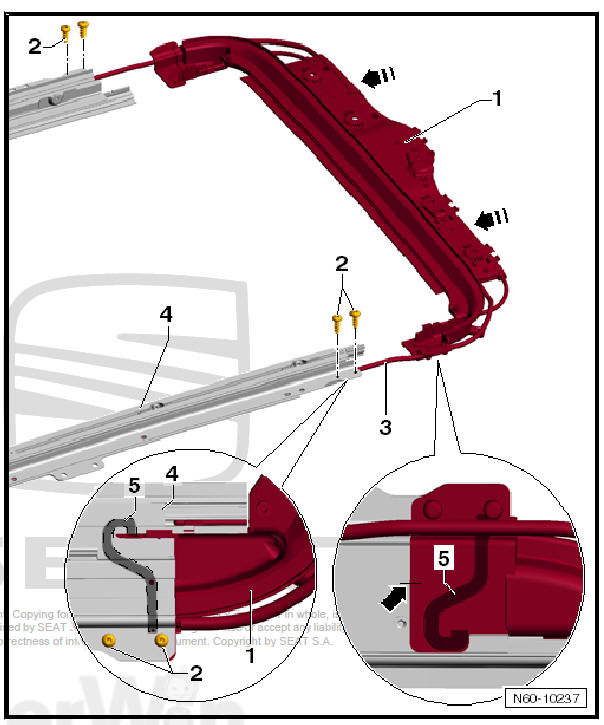

  • Insert a ø 3.5 mm butyl sealing cord - AKD 497 010 04 R10- -5- into bonding channel on rear section -1- as shown.
  • Push entire rear part -1- with discharge tubes -2- in direction of -arrow- onto guide rails -3-.
  • Tighten bolt -2- to specified torque 2 Nm.

Note Before installation, check assembly frame for leaks.

Sunroof

  • Seal water drain fitting -3-.

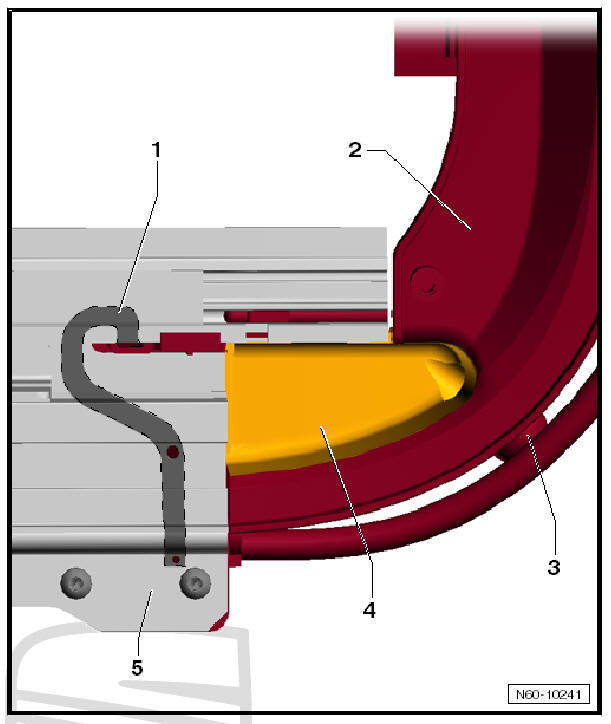

  • Fill marked area -4- between rear section -2- and guide rail -5- with water.
  • Wait for at least 5 minutes and then check for leaks.
  • Seal any leaks with butyl sealing cord - AKD 497 010 04 R10- .
  • Install sun blind.
  • Install sun blind motor.
  • Install new interior seal.
  • Install assembly frame.
  • On completion of all work, carry out a normalisation run for all panoramic sliding roof drives
    Removing and installing sliding sunroof frame
    Removing Note A second mechanic is required for removing and installing assembly frame. Remove moulded headlining. Pull water drain hoses off connecting pieces -arrows- on mounting frame - ...

    Removing and installing tilt mechanism for sliding sunroof
    Removing Remove front glass panel. Remove rear glass panel. Remove assembly frame from vehicle. Remove sliding roof motor. Remove rear section from assembly frame. Remove bolts -arrows ...
