Seat Leon >> Removing and installing sunroof roller blind

Removing

Note In the event of power failure, sun blind can be moved by turning sun blind motor with a commercially available hexagon key to removal position (fully open).

Sunroof

  • Open sun blind completely.
  • Remove rear glass panel.

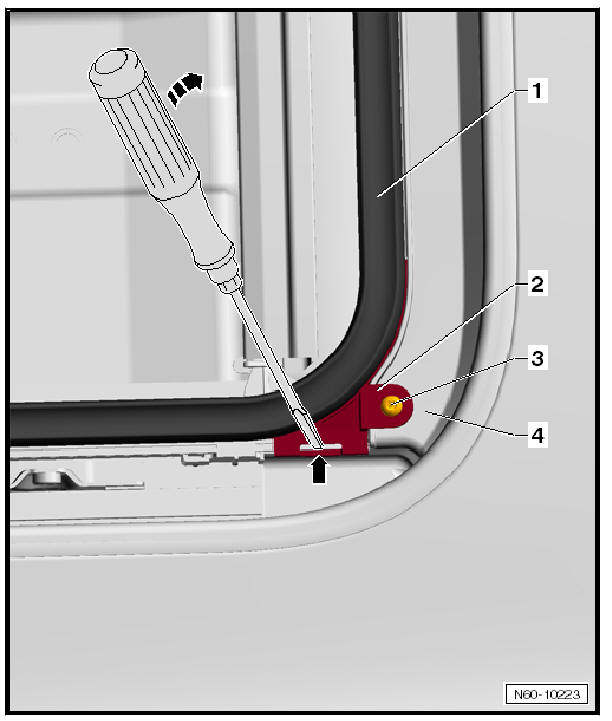

  • Remove bolts -3- of cap -2- on both sides.

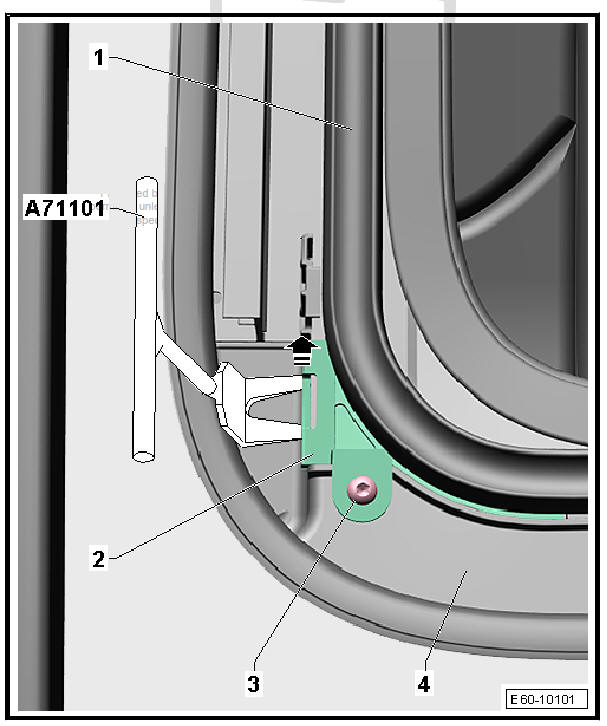

  • Release the fastener -arrow- of the cap -2- out of the rear part -4- with the aid of the lever - A71101- .

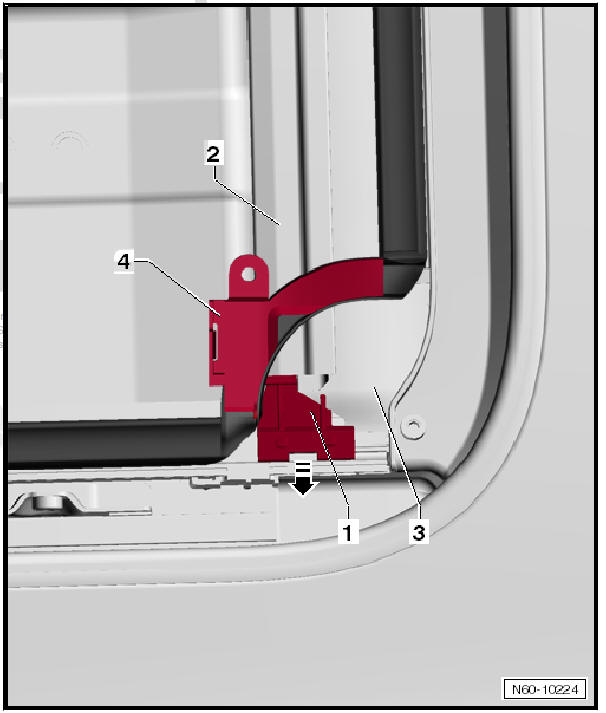

Sunroof

  • Fold up cover -4-.

Interior seal is not removed to do this.

  • Carefully lift sun blind cross strut -2- together with sun blind slide -1-.

Note When doing so, make sure that the blind material is not damaged.

  • Pull sun blind slides -1- sideways in direction of -arrow- and out of sun blind cross strut -2-.

Sunroof

  • Remove moulded headlining.

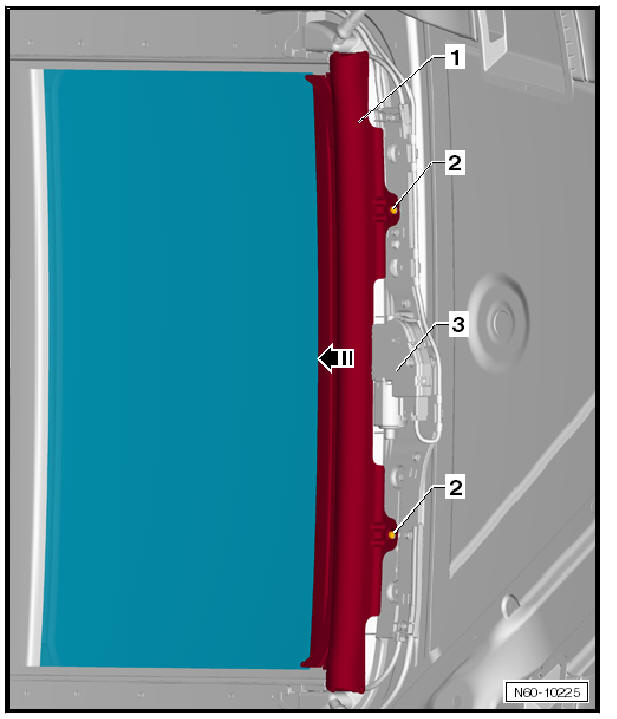

  • Undo screws -2- of sun blind housing -1-
  • Pull sun blind housing -1- downwards a little in -direction of arrow-.

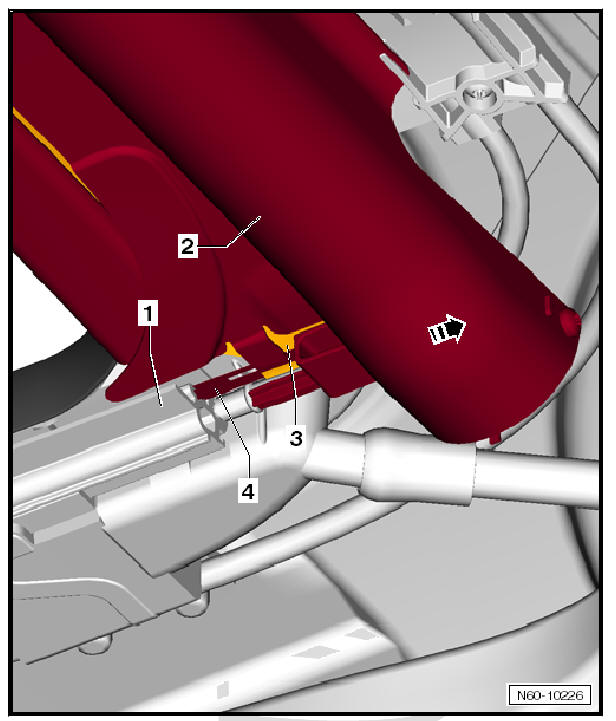

Sunroof

  • Pull sun blind housing -1- together with sun blind steel strap -4- in direction of -arrow- out of sun blind rail -2-.

Note Proceed carefully so that the blind material -3- is not damaged.

Sun blind cross strut can be renewed when sun blind is removed.

fitting

Note

  • Sun blind cross strut must be fitted before installation of sun blind housing.
  • Do not grease sun blind slide and sun blind cables.

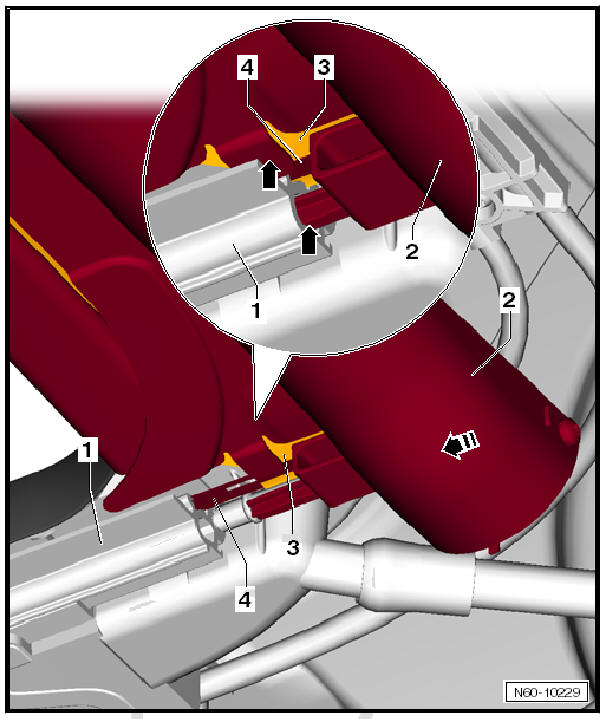

Sunroof

  • Push sun blind housing -2- together with sun blind steel strap -4- in direction of -arrow- into assembly frame -1-.
  • The guides of the sun blind housing must be pushed onto assembly frame -1- precisely -arrows-.

Note Make sure that the blind material -3- is not damaged.

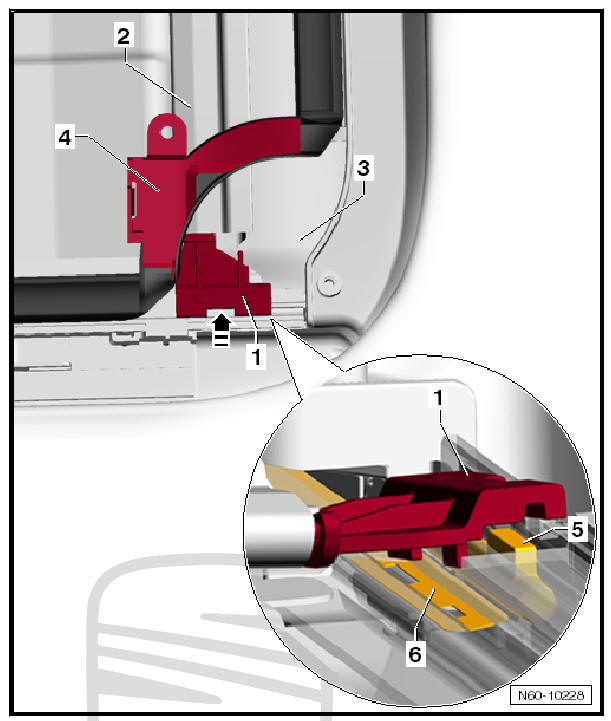

Sunroof

  • Push sun blind slide -1- in direction of -arrow- into sun blind cross strut -2-.

Note Ensure that sun blind slide -1- engages in cut-out of sun blind steel strip -6- and in follower of sun blind cable -5-.

Sunroof

Continue installation in reverse order.

  • Connect cover -2- to assembly frame -4- so that engages correctly.

Tighten bolt -3- to specified torque 2 Nm.

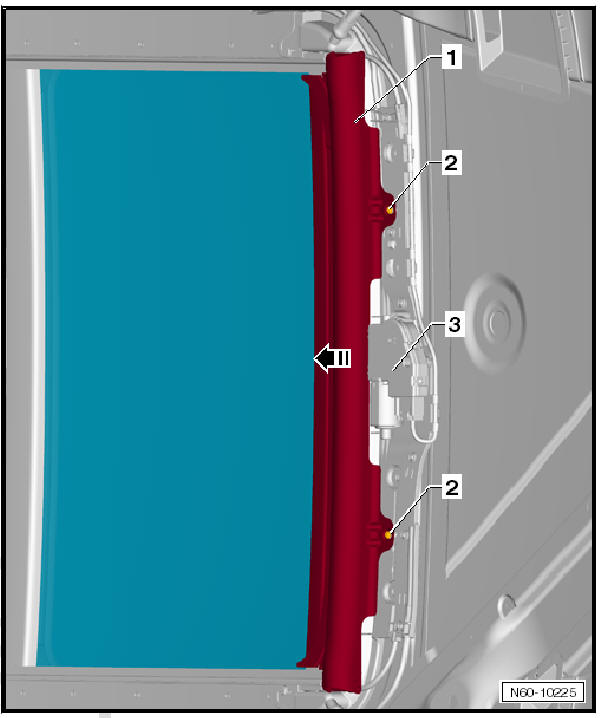

Sunroof

  • Correctly position sun blind housing -1-.

Tighten bolt -2- to specified torque 3.5 Nm.

Note

  • After installing the roller blinds, this must be checked for synchronous run and if it is running properly.
  • Fort his purpose, the roller blind can be moved by hand on sun blind motor using a commercially available hexagon key.
  • Watch out for folding and warping of the sun blind material.



  • Install moulded headliner.
  • Install rear glass panel.
  • On completion of all work, carry out normalisation run for sun blind motor.

Removing and installing sunroof roller blind rail

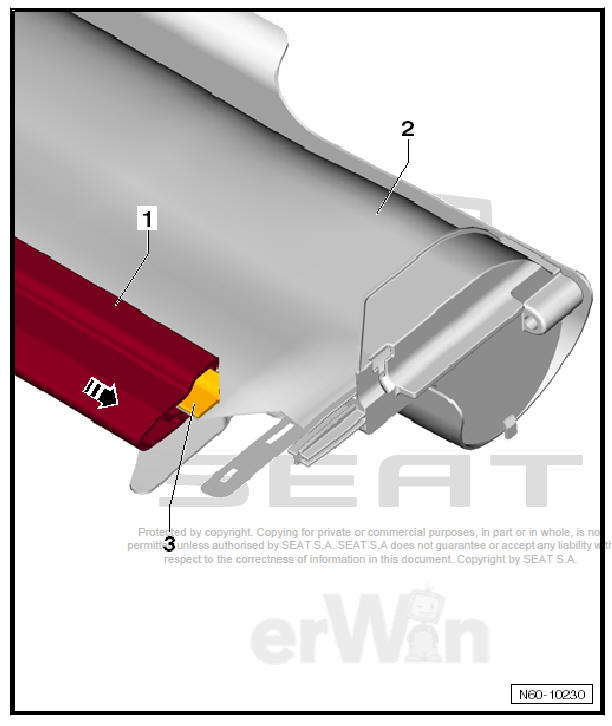

Sunroof

Note Make sure that the blind material -2- is not damaged.

Removing

  • Remove sun blind.
  • Carefully pull sun blind cross strut -1- in direction of -arrow- out of beading -3- of sun blind fabric -2-.

fitting

  • Carefully push sun blind cross strut -1- onto beading -3-.
  • Install sun blind.
