Removing and installing exterior seal for rear glass panel

Removing

Sunroof

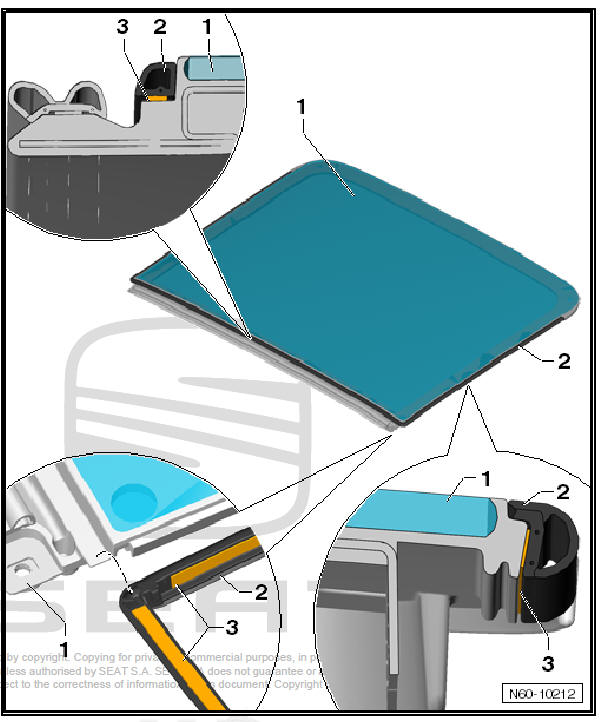

  • Pull seal -2- off rear glass panel -1- all round.
  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .

fitting

Note To guarantee a good bonding of seal, do not bond at a temperature below 20º.

Sunroof

  • Bonding surface on glass panel must be free of dust and grease.
  • Clean complete bonding area with cleaning solution - D 009 401 04- .

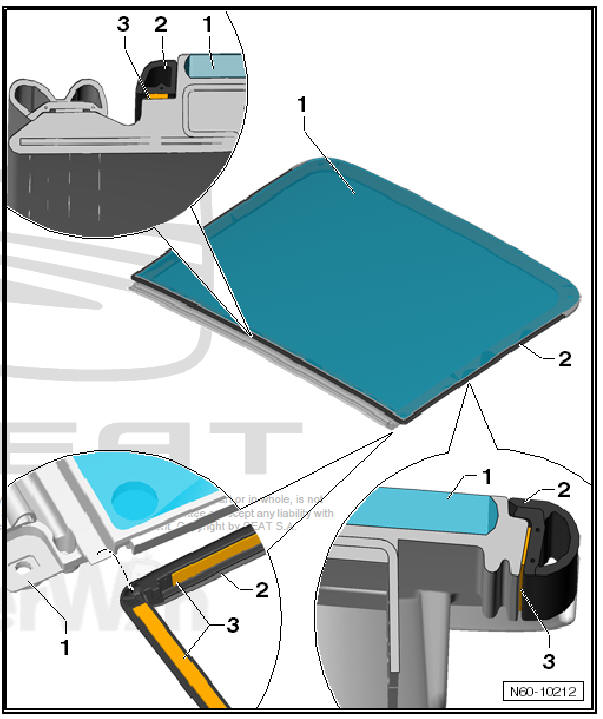

  • Pull protective film -3- off adhesive tape of new seal -2- and press seal on at corners and ends.
  • If the seal is excessively long, any excess length is evenly compressed.
  • Press seal on evenly all round using roller - 3356- .
  • Install rear glass panel.

Removing and installing inner seal for rear glass panel

Removing

Sunroof

  • Open front glass panel completely via the convenience position.

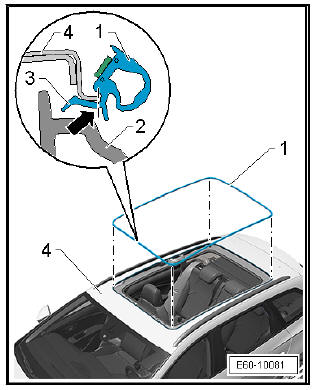

  • Pull seal -2- off rear glass panel -1-.
  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .

fitting

Sunroof

  • Bonding surface on glass panel must be free of dust and grease.
  • Clean complete bonding area with cleaning solution - D 009 401 04- .

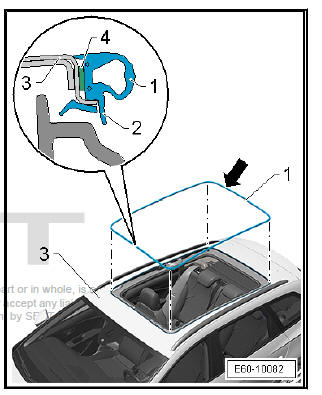

  • Pull protective film -4- off adhesive tape of new seal -2- and press seal on at ends.
  • If the seal is excessively long, any excess length is evenly compressed.
  • Press seal on evenly all round using roller - 3356- .

Removing and installing the exterior seal

Removing

  • Remove front glass panel.
  • Remove rear glass panel.

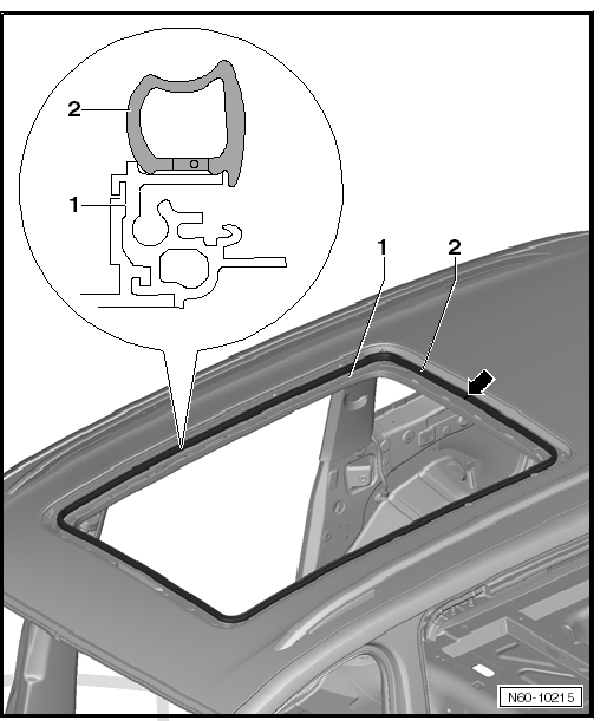

  • Pull exterior seal -1- off all round.
  • Cut off all round profile of outer seal -1- in -arrow- area, flush with edge of roof -4-.
  • Remaining part -3- stays between roof -4- and assembly frame -2-.
  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .

Sunroof

fitting

Note

  • New seal is supplied in excess length. The new seal must be cut to length appropriately. It is recommended to leave new seal 1-2 mm longer than it should be and to compress any excess length.
  • To guarantee a good bonding of seal, do not bond at a temperature below 20º.
  • After bonding outer seal, wait at least 30 min before fitting glass panel to ensure seal does not unstick.



  • Entire bonding surface on roof cut-out must be free of dust and grease.
  • Clean complete bonding area with cleaning solution - D 009 401 04- .

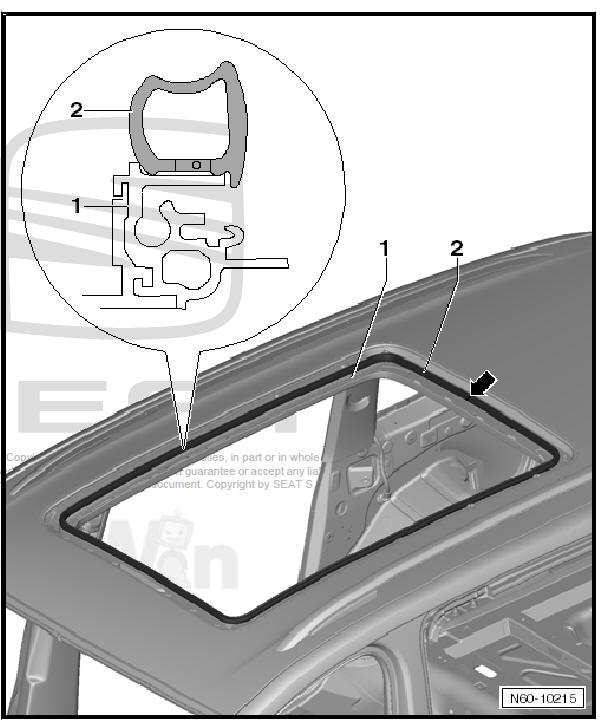

  • Centre new exterior seal -1- with joint -arrow- to centre of rear roof cut-out.
  • Pull protective film from adhesive tape -4- of new exterior seal -1- and press seal onto roof -3-.
  • The seal must not pull into the radii, otherwise the seal will stretch and compress.
  • Press exterior seal on firmly and evenly 2x around circumference using roller - 3356- .
  • Install rear glass panel.
  • Install front glass panel.

Sunroof

Removing and installing interior seal

Removing

Sunroof

  • Remove front glass panel.
  • Remove rear glass panel .

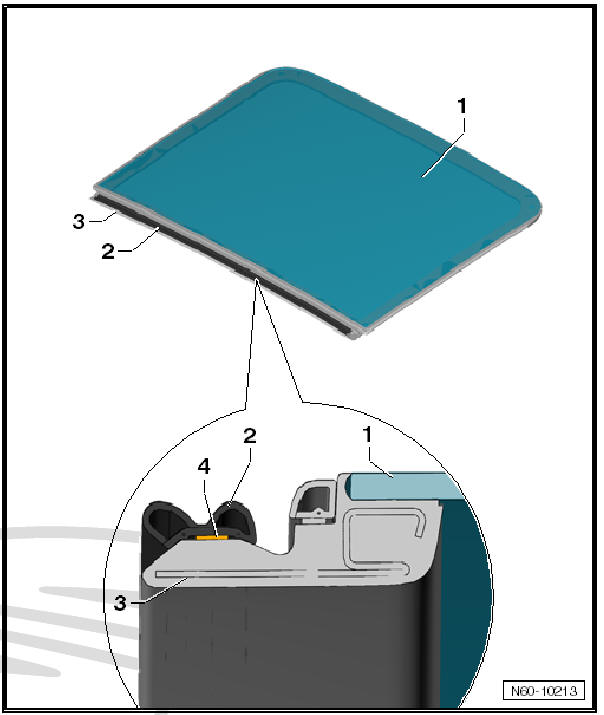

  • Pull interior seal -2- off assembly frame -1-.
  • Remove any adhesive residue with adhesive strip remover - VAS 6349- .

fitting

  • Bonding surface must be free of dust and grease.
  • Clean complete bonding area with cleaning solution - D 009 401 04- .

Note To guarantee a good bonding of seal, do not bond at a temperature below 20º.

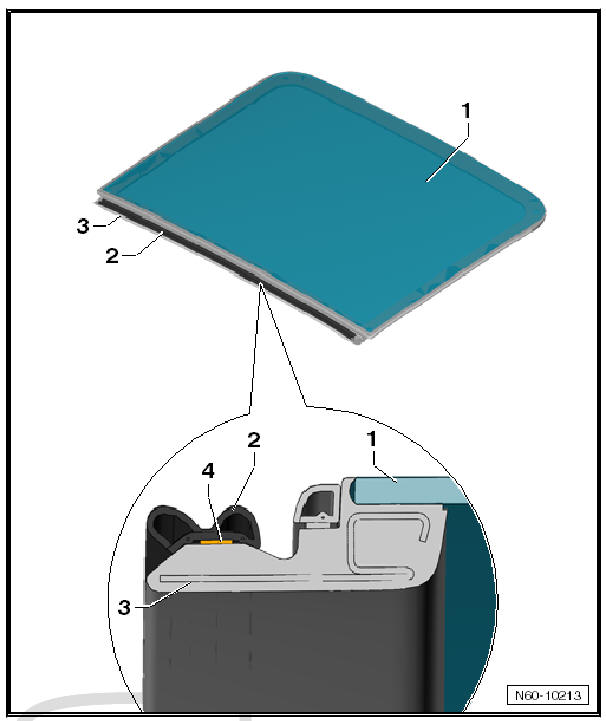

  • Align interior seal -2- with butt positioned on rear centre of roof cut-out, onto bonding surface of assembly frame -1-.
  • Pull protective film off adhesive tape of new interior seal and press on.
  • The seal must not pull into the radii, otherwise the seal will stretch and compress.
  • Press interior seal on firmly and evenly 2x around circumference using roller - 3356- .
  • Install rear glass panel.
  • Install front glass panel.
    Adjusting glass panel
    Checking height adjustment Note Front glass panel must only be adjusted at front edge -1- and rear glass panel at rear edge -2-. To achieve the best possible optical appearance, ensure that ...

    Removing and installing wind deflector
    Removing Open front glass panel. Unclip the mounting bracket of the wind deflector out of the assembly frame -1- using a screwdriver -arrows- Undo bolts -2- securing wind deflector -1- T ...
