Seat Leon >> Exploded view - door

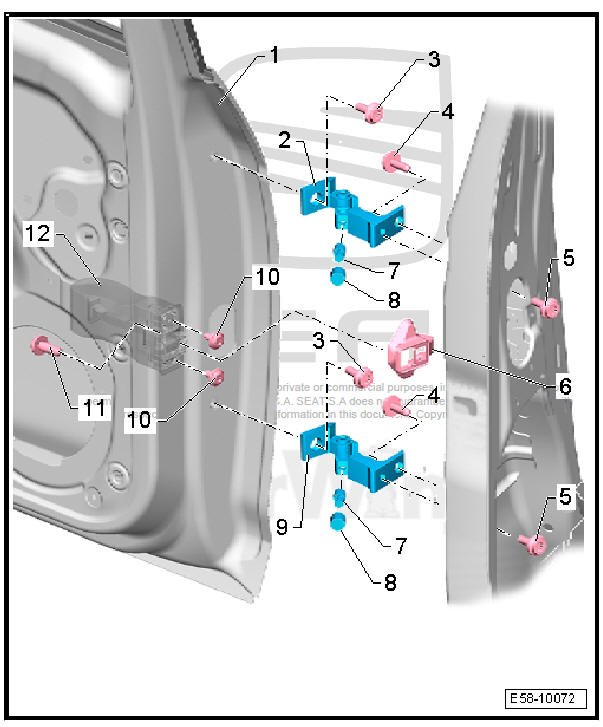

Rear doors, door components

  1. - Rear door
  2. - Upper hinge
  3. - Bolt.
    2 + 2 each
    Always replace.
    32+- 5 Nm
  4. - Bolt.
    2 + 2 each
    Always replace.
    32+- 5 Nm
  5. - Bolt.
    2 + 2 each
    Always replace.
    32+- 5 Nm
  6. - Seal
  7. - Stud
    Always replace.
    10+- 1.5 Nm
  8. - Sealing plug
    To cover the stud head
  9. - Lower hinge
  10. - Bolt.
    2 + 2 each
    8+- 1 Nm
  11. - Bolt.
    1 + 1 each
    30+- 5 Nm
    For fixing the strut of the door retainer on the B-pillar.
  12. - Back door holder

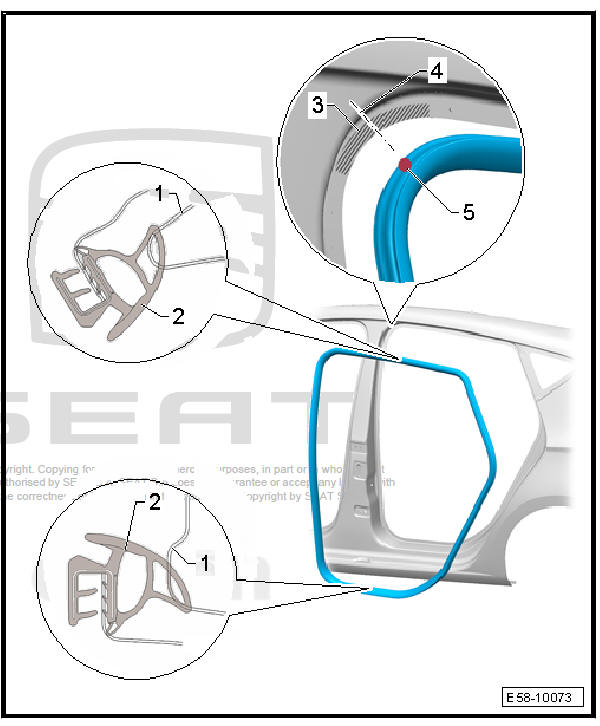

Seals on back door - Assembly overview

Rear doors, door components

  1. - Rear door
  2. - Back door seal
  3. - Top diameter of the body flange
    Is used as reference point when installing the seal
  4. - Imaginary line of the reference
    Angle bisector, that form the sides of the upper radius
  5. - Colour marking
    Marked on the inner section of the seal
