Seat Leon >> Removing and installing the cover for the lock of the outside handle (front door)

SEAT Leon Service and Repair Manual / General body repairs, exterior / Front doors, door components, central locking / Door components / Removing and installing the cover for the lock of the outside handle (front door)

Special tools and workshop equipment required

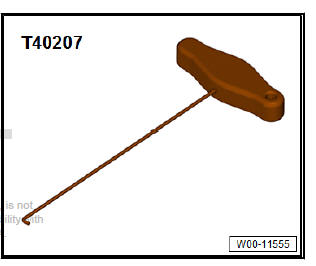

  • Hooks - T40207-

Front doors, door components, central locking

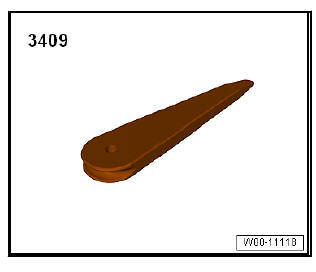

  • Release lever - 3409-

Front doors, door components, central locking

Note The lock cover of the outside handle (front door) is installed only on the passenger side.

Removing

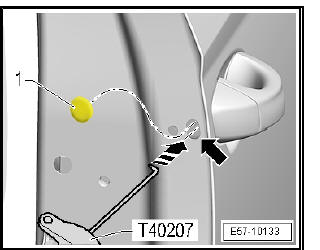

  • Release the anti-jam protection -1- and guide the hook - T40207- in the position shown through the aperture in the door -Arrow-.

Front doors, door components, central locking

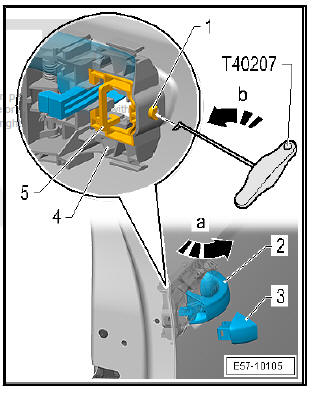

  • Insert the hook - T40207- until it makes contact with the axis -1- of the locking bar -5-.
  • Pivot the hooks - T40207- in the direction of -arrow B- until it engages in the inner tab of the axis -1- of the locking bar -5-.

    Pull the hooks - T40207- to the rear to be able to axis -1- out until the stop.

  • Carefully pull the handle -2- outwards -arrow A- and hold tight.
  • Using the lever - 3409- , remove the lock cover -3- from the handle mount -2-.

fitting

Fit in reverse order from removal, remembering the following:

Front doors, door components, central locking

  • Before installing the handle trim, make sure that the locking bar is in the disengaged position that it was in when removing.

    If you have problems with inserting the handle trim, remove the axis of the locking bar again using the hooks - T40207- as described in the removal procedure.

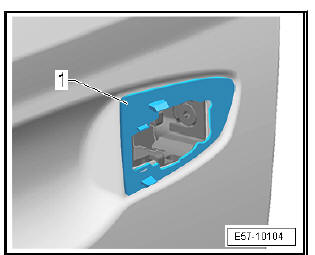

  • If the rear base -1- is damaged or brittle, replace it.
  • Make sure that the rear base -1- is installed correctly.

Front doors, door components, central locking

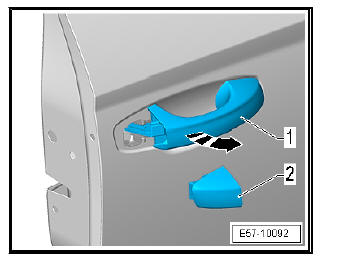

  • Pull the handle -1- in the -direction of the arrow- and secure.
  • Insert the lock cover -2- into the handle mount.
  • Release lever -1-.

Front doors, door components, central locking

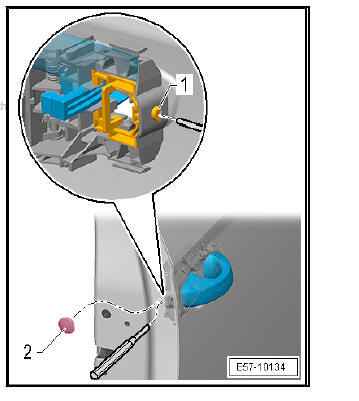

  • Detach the anti-jam protection -2-
  • Insert a driver in aperture of protective cover and apply pressure to shaft on locking bracket -1- until it abuts firmly against its limit stop.
Caution

Do not close the door; it may possibly not open.

  • After completing the installation work, check for trouble-free function as Bowden cables set or hung in incorrectly may prevent the door from opening.
  • Use isopropanol or heptanol to clean the door area to which you must fit the polyurethane protection -2-.
  • Then use silicon cleaning agent on the affected area. Allow to dry well.
  • Fit the polyurethane protection -2- to the door.
