Seat Leon >> Separation element: removing and installing

Special tools and workshop equipment required

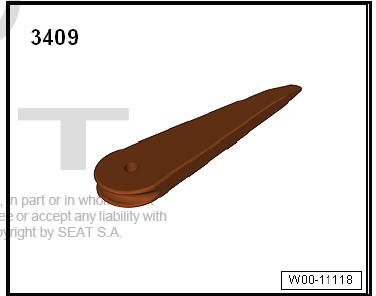

  • Release lever - 3409-

Body - front

Removing

Note The sequences below describe the processes for removal and installation for the left side of the vehicle. The corresponding sequences for the right side are similar with the exception that, where applicable, the scope of the process is written by yourself.

  • Remove front wheel housing liner .

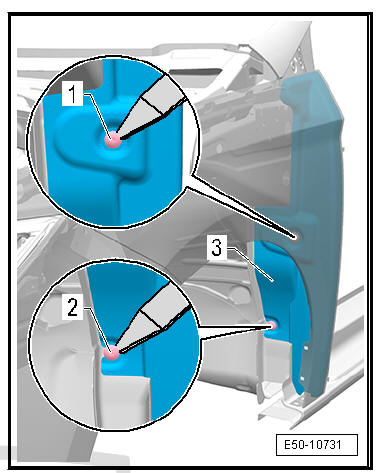

  • Use the lever - 3409- to remove the clips -1- and -2-.
  • Carefully remove the spacer -3- to the front.

fitting

Installation is done in reverse order of removal operations.
