Seat Leon >> Folding table*

Folding tables are fitted to the rear of the front seat backrests.

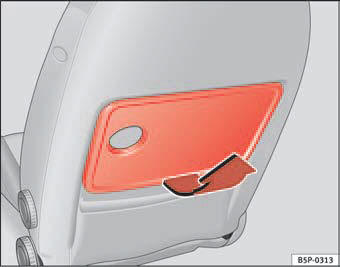

Fig. 96 Folding table on

Fig. 96 Folding table on left front seat

– To open the table, open it up in the direction of the arrow  fig. 96.

WARNING

• The folding tables may not be folded down whilst the vehicle is in motion and anyone is seated on the second row of seats. Risk of injury during a sudden braking manoeuvre! The table must therefore be closed and properly secured whilst the vehicle is in motion.
• Never place hot drinks in the drink holders. During normal or sudden driving manoeuvres, sudden braking or an accident, the hot drink could be spilled. Danger of scalding.

Caution
When driving, do not leave open containers in the cup holders. The drink might be spilt on braking, for example, and could damage the vehicle.

    Stowage compartment under the left-hand side front seat*
    There is a stowage locker with a cover under the front lefthand side seat. Fig. 95 Stowage area under the front seats The locker*  fig. 95 A is opened by pulling on the cover. There are ...

    Stowage compartment with the CD charger*
    The CD* loader is located under the front right hand seat To access the loader – Open the external cover by operating the button on this cover. – Pull the sliding internal cover to the right. ...
