Seat Leon >> Front interior light

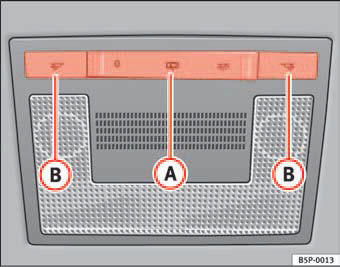

Fig. 77 Detail of the roof:

Fig. 77 Detail of the roof: Front reading light

The switch A fig. 77 is used to select the following positions:

Courtesy light position Rocker switch in flat position (not activated). The interior lights are
Rocker switch in flat position (not activated). The interior lights are automatically switched on when the vehicle is unlocked or the key removed from the ignition lock and turn off about 20 seconds after the closure of the doors. The interior lights are switched off when the vehicle is locked or when the ignition is switched on.

Interior light switched on Push the switch to the position .
Push the switch to the position Interior light switched off O.

Interior light switched off O
Push the switch to the position O  fig. 77 .

Note
If not all the vehicle doors are closed, the interior lights will be switched off after approx. 10 minutes, providing the key has been removed and the courtesy light position selected. This prevents the battery discharging.

    Front reading lights
    Fig. 78 Interior roof lining: Front lights Switching on the reading light Press the button B to switch on the reading light. Switching off the reading lights Press the button B to switch off ...
