Seat Leon >> Emergency opening
SEAT Leon Owner's Manual / Operating instructions / Unlocking and locking / Tailgate / Emergency opening
This allows the vehicle to be opened if the central locking does not operate (for example if the battery is flat)

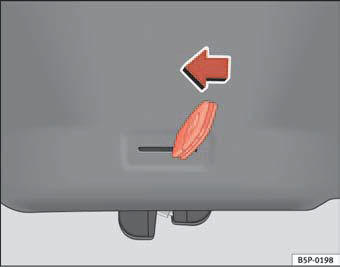

Fig. 67 Tailgate: emergency opening
There is a groove in the boot allowing access to the emergency opening mechanism.
Opening the tailgate from inside the luggage compartment
– Insert the key bit in the groove and unlock the locking system,
turning the key from right to left, as shown by the arrow
fig. 67.
Opening and locking
The operation of the tailgate opening system is electric. It is
activated by using the handle on the tailgate
Fig. 65 Tailgate: Opening
from the outside
Fig. 66 Detail of the tailgate
inner t ...
