Seat Leon >> Overview of the warning lamps

The warning lamps indicate a number of different functions and possible faults.

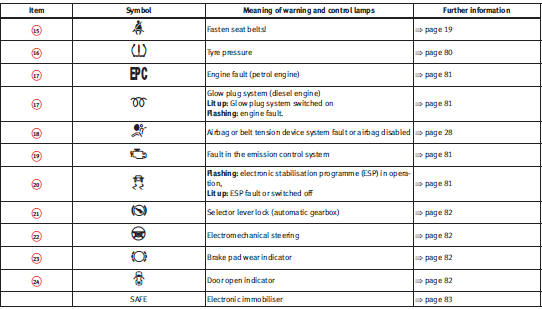

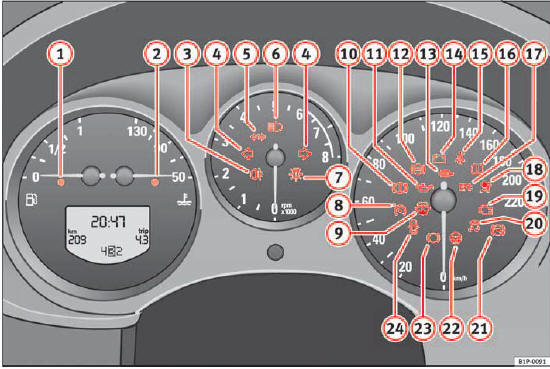

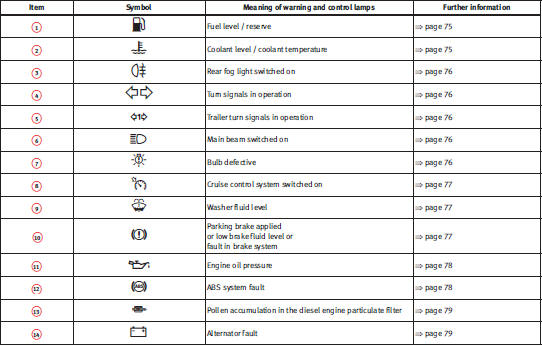

Fig. 46 Instrument panel with warning lamps. Some of

Fig. 46 Instrument panel with warning lamps. Some of the items of equipment listed here are fitted only on certain models/model years or are optional extras.

WARNING

WARNING

• Failure to observe warning lamps and warning messages can result in serious personal injury or damage to your vehicle.
• The risk of an accident increases if your vehicle breaks down. Use a warning triangle to draw the attention of other road users to your stationary vehicle so that it does not represent a danger.
• The engine compartment of any motor vehicle is a dangerous area! Before you open the bonnet to work on the engine or in the engine compartment, you must switch off the engine and allow it to cool to reduce the risk of scalding or other injuries. Read and observe the relevant warnings

Note
• The appropriate warning lamp for a fault will light up in vehicles without warning or information texts in the display.
• In vehicles with warning or information texts in the display, the appropriate warning lamp for a fault will light up and a warning or information text will also appear in the display.

    Fuel level / reserve
    This symbol lights up to indicate that the fuel tank is down to the reserve level. This lights when only 7 litres of fuel remain in the tank. Also, an audible warning is given. This serves as a r ...
