Seat Leon >> Example of menu use

All the menus on the instrument panel may be used according to the following procedure.

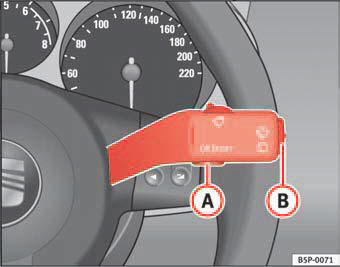

Fig. 44 Windscreen wiper

Fig. 44 Windscreen wiper lever: button A to confirm the menu point and rocker switch B to change the menu

Fig. 44 Windscreen wiper

Fig. 44 Windscreen wiper lever: button A to confirm the menu point and rocker switch B to change the menu

The setting of a speed warning will be used as an example of how to use the menus. This is a good idea if you are, for example, using winter tyres which are not suited for the top speed of the vehicle.

1. Open the main menu
– Switch on the ignition.
– Hold down button B for two seconds to return to main menu from other menu. It may be necessary to repeat this operation until the main menu is displayed.

2. Open the main menu “Configuration”
– To choose an option from the menu, press the upper or lower end of the rocker switch. The selected option is displayed between two lines and there will also be a triangle on the right.
– Select menu Configuration.
– Press button A on the windscreen wiper lever. The Configuration menu is opened.

3. Open the main menu “Winter tyres”
– Select option Winter tyres using the rocker switch.
– Press button . The menu Winter tyres is opened

4. Program a speed limit warning
– Use the rocker switch to select the menu entry +10 km/h or -10 km/h and press the button to either increase or decrease the set speed.

5. To activate and deactivate the speed limit warning
– Use the rocker switch to select the menu point On/Off and press the button to switch the speed warning either on or off. If the speed warning is deactivated, three dashes will be displayed ---

6. To close the menu “Winter tyres”
– In the menu select Back.

The function “Winter tyres” sends an optical and an acoustic signal when the vehicle reaches the set speed.

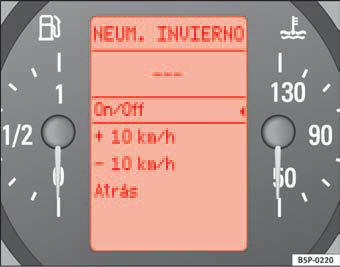

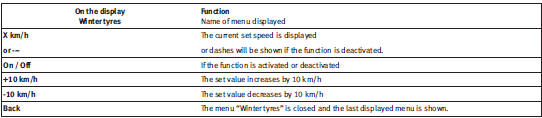

Example menu “Winter tyres”

Note

Note
For electronic and vehicle equipment one or more of these menus will be displayed.
