Seat Leon >> Removing and installing bearing bush

Removing

  • Push driver's seat as far back as possible.
  • Move steering wheel up as far as it will go, making use of full range of steering column adjuster.

Vehicles with knee airbag

  • Remove the knee airbag -1- on the driver's side .

Vehicles without knee airbag

  • Disconnect battery .

Clutch

Continued for all vehicles:

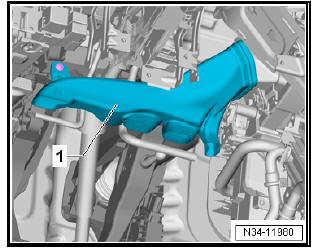

  • Remove the driver-side footwell outlet vent -1-.

Clutch

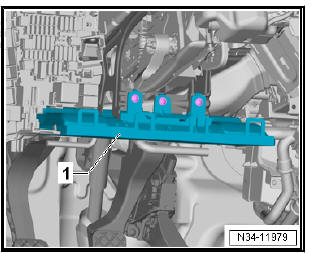

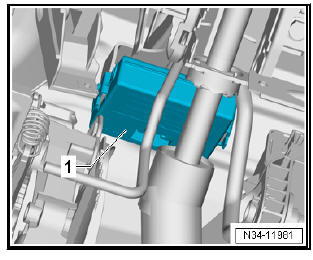

  • Remove the diagnosis interface for data bus - J533- from the mounting -1-.

Clutch

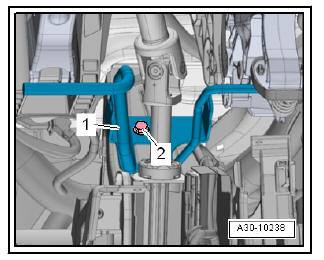

  • Remove bolt -2-, detach crash bar -1- and push to one side.

Clutch

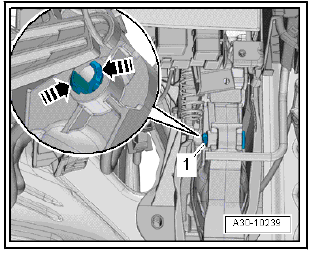

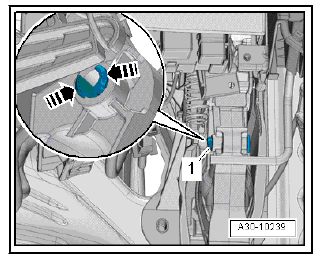

  • Compress catches -arrows- and take out pin -1- towards right side.

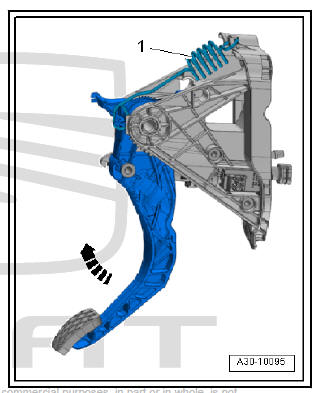

  • Press the clutch pedal in -direction of arrow- to the rearmost position.

Clutch

  • Turn plunger of master cylinder so that recesses -1- or pin -2- are visible.

Recesses -1- and pin -2- are facing the same direction.

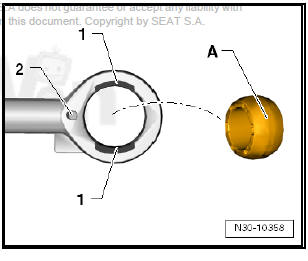

  • Turn bearing sleeve -A- and pull out over the indents -1-.

Clutch

Installing

Recesses -1- and pin -2- are facing the same direction.

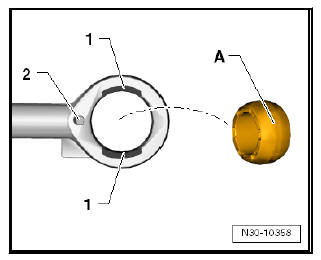

  • Insert bearing sleeve -A- over the indents -1- and turn.
  • Turn plunger/clutch master cylinder and place in the support of clutch pedal.

Clutch

  • Connect plunger/clutch master cylinder with the clutch pedal using a new pivot pin -1-.

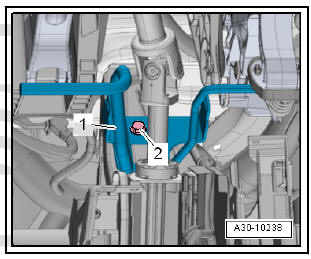

  • Position the crash bar -1- and fully tighten the screw -2- .
  • Remove the diagnosis interface for the data bus - J533- from the bracket.
  • Install the driver-side footwell outlet vent.

Clutch

Vehicles with knee airbag

  • Install driver-side knee airbag.

Vehicles without knee airbag

  • Connect vehicle battery.
