Seat Leon >> Removing and installing parking brake cable, vehicles with manual parking brake

SEAT Leon Service and Repair Manual / Brake system / Brakes - mechanism / Handbrake / Removing and installing parking brake cable, vehicles with manual parking brake

Removing:

  • Bring handbrake lever into the neutral position, move downwards.

Vehicles with front central armrest:

  • Remove the front centre armrest .

Vehicles without front central armrest:

  • Pull out rear cover of storage compartment of the centre console.

Continuation for all models:

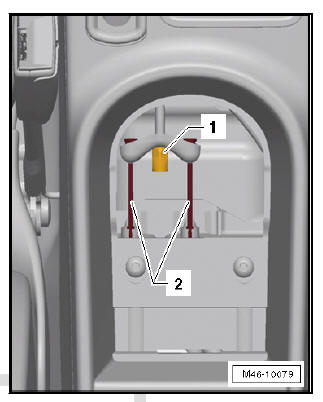

  • Loosen the adjustment nut -1- until the handbrake cable -2- can be removed from the compensator.

Brakes - mechanism

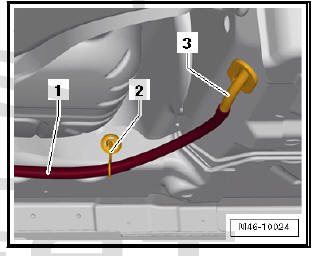

  • Loosen the handbrake cable -1- out of the holder -2- and take it out of the guide rail -3-.

Brakes - mechanism

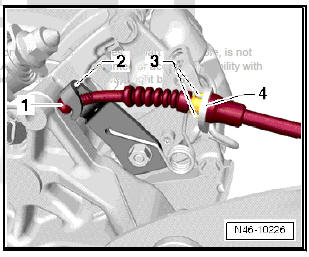

  • Hang out the handbrake cable -1- from the lever on the brake calliper -2-.
  • Press the tabs -3- together and remove the handbrake cable from the holder -4- on the brake calliper.

Vehicles with rigid rear axle:

Brakes - mechanism

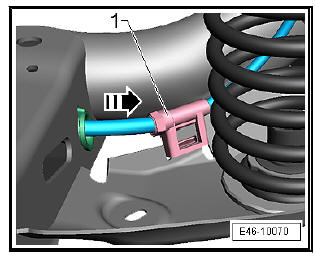

  • Unfasten the retaining clips -1- and pull cable in -direction of arrow-.

Vehicles with multi-link rear axle:

Brakes - mechanism

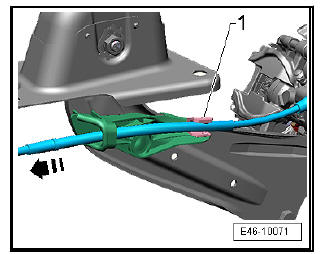

  • Disconnect the retaining cable -1- and remove in -direction of arrow-.

Installation:

Carry out installation in the reverse sequence, noting the following:

Brakes - mechanism

Note Apply the handbrake before installing the front central armrest or the rear oddments tray.

  • Adjust handbrake.
