Seat Leon >> Removing and fitting fresh air blower control unit - J126-

Removal:

  • Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the lower glove compartment cover .
  • Use a screwdriver to unfasten the quick-release fastener -1-.
  • Fixing screws -2- of the bottom cover

Air conditioning system

  • Remove the bottom cover -3-.

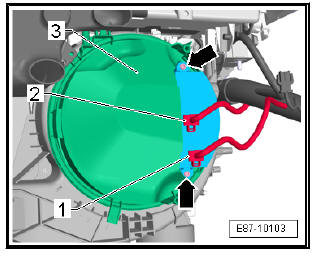

  • Unplug the connectors -1, 2-.
  • Remove bolts -arrows-.
  • Remove the fresh-air blower control unit from the bracket - J126- -3-.

Air conditioning system

WARNING

Risk of scalding.

  • The fresh air blower - V2- with fresh air blower control unit - J126- may be hot if it was in operation prior to removal.
  • Do not grasp hold of the hot cooling surface at the fresh air blower control unit - J126- .

Installing

Install in reverse order of removal; note the following.
