Seat Leon >> Removing and installing right temperature flap servomotor - V159-

SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Servomotors / Removing and installing right temperature flap servomotor - V159-

Removal:

  • Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the lower glove compartment trim .

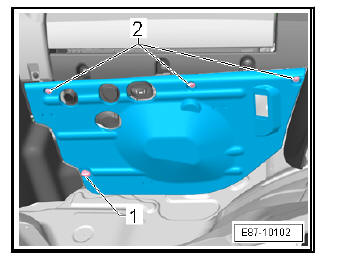

  • Use a screwdriver to unfasten the quick-release fastener -1-.
  • Remove the hollow bolts -2-.
  • Removing footwell vent on front passenger side.

Air conditioning system

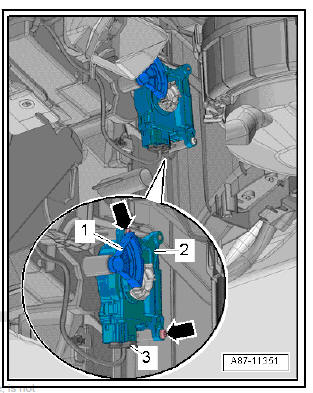

  • Detach the temperature flap operating shaft -1-.
  • Remove bolts -arrows-.
  • Remove the Right temperature flap control motor - V159- -2-.
  • Detach the electrical connector -3-.

Air conditioning system

Installing

Install in reverse order of removal; note the following.

Air conditioning system

Note

  • Check operation of flaps and hinge mechanism before fitting.
  • Make sure levers and shafts are properly fitted in the mounts.

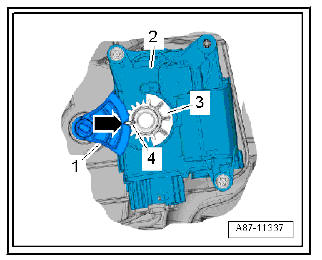

  • Position the control motor -2- at the air distribution housing.

    The gear wheel -3- at the control motor must engage in the gear wheel -1- at the temperature flap lever.

  • The long tooth -4- must engage in the recess -arrow- at the actuating arm.

Note

  • Turn the mount in the control motor if the gear wheels at the control motor and temperature flap lever are not opposite one another.
  • The control motor is not properly positioned on the housing if the bolts cannot be fitted.



  • Route wiring harness so that it cannot come into contact with any moving parts (e.g. actuating arm on servomotor).
