Seat Leon >> Removing and installing temperature flap servomotor - V68-

SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Servomotors / Removing and installing temperature flap servomotor - V68-

WARNING

Risk of injury from knee airbag.

  • Before working in the area of pyrotechnic components, the person doing the work must ensure "static discharge".

    Heed the safety precautions for working on airbags.

Removal:

  • Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the lower right side of the dash panel on the driver's side.
  • Extract the vent from the foot well.

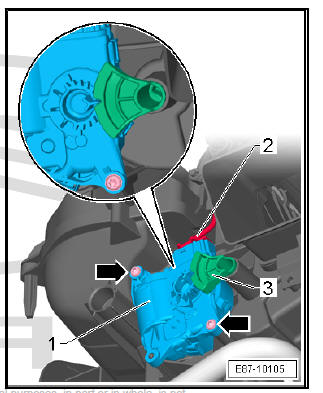

  • Remove bolts -arrows-.
  • Swivel out the temperature flap control motor - V68- -1- behind the actuating shaft -3- for the temperature flap.
  • Detach the electrical connector -2-.
  • Remove the positioning motor.

Air conditioning system

Installing

  • Install in reverse order of removal; note the following.

Air conditioning system

Note

  • Check operation of flaps and hinge mechanism before fitting.
  • Make sure levers and shafts are properly fitted in the mounts.

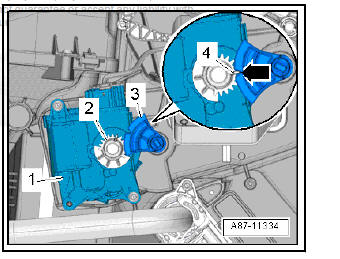

  • Position the control motor -1- at the air distribution housing.

    The gear wheel -2- at the control motor must engage in the gear wheel -3- at the temperature flap lever.

  • The long tooth -4- must engage in the recess -arrow- at the actuating arm.

Note The control motor is not properly positioned on the housing if the bolts cannot be fitted.

  • Route wiring harness so that it cannot come into contact with any moving parts (e.g. actuating arm on servomotor).
